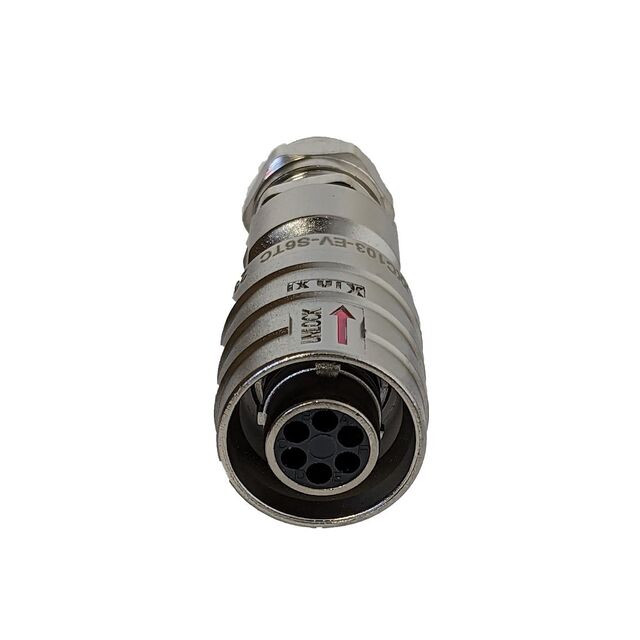

A1-XXC103P007
ActivePower Dynamics, Inc.
HIGH VOLTAGE AUTO/EV CONN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1-XXC103P007
ActivePower Dynamics, Inc.
HIGH VOLTAGE AUTO/EV CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A1-XXC103P007 |
|---|---|
| Applications | Automotive |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 150 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.99 | |
| 10 | $ 13.13 | |||
Description
General part information
A1-XXC103P007
6 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
