8PM-27-0002-02-642
ActivePRECI-DIP SA
2 POSITION SPRING PISTON CONNECT
Deep-Dive with AI
Search across all available documentation for this part.
8PM-27-0002-02-642
ActivePRECI-DIP SA
2 POSITION SPRING PISTON CONNECT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8PM-27-0002-02-642 |
|---|---|
| Connector Type | Piston |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Material | Brass |
| Mounting Type | Through Hole |
| Number of Rows | 1 |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.17 | |
| 10 | $ 3.55 | |||
| 25 | $ 3.32 | |||
| 50 | $ 3.16 | |||
| 100 | $ 3.01 | |||
| 250 | $ 2.82 | |||
| 500 | $ 2.69 | |||
Description
General part information
8PM-27-0002-02-642

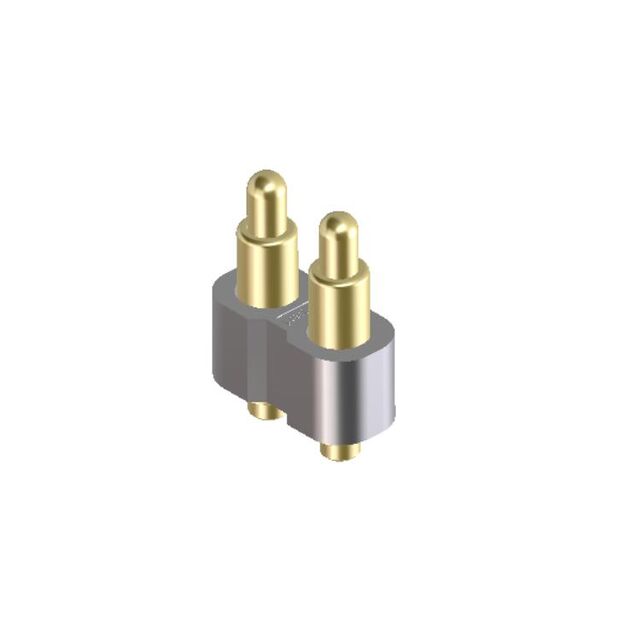

2 Position Spring Piston Connector Through Hole
Documents
Technical documentation and resources
No documents available
