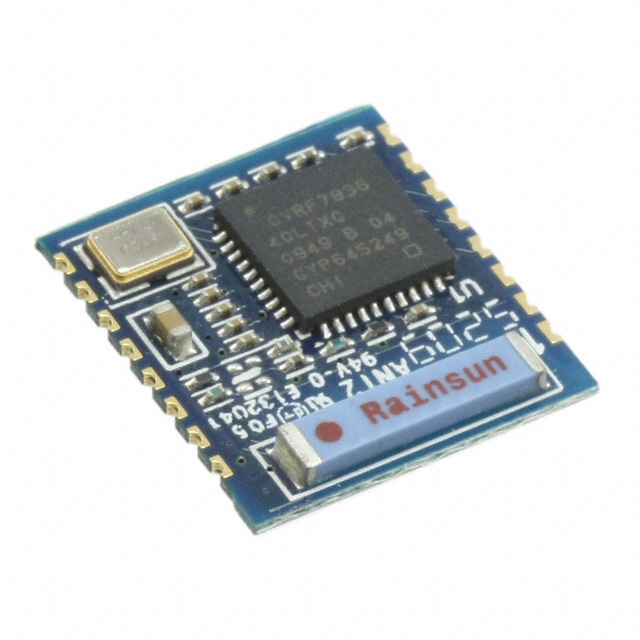

AW24MCHL-SM
ObsoleteArtaflex Inc.
RF TXRX MOD ISM>1GHZ CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AW24MCHL-SM
ObsoleteArtaflex Inc.
RF TXRX MOD ISM>1GHZ CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AW24MCHL-SM |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving [Max] | 21.2 mA |
| Current - Receiving [Min] | 18.4 mA |
| Current - Transmitting [Max] | 34.1 mA |
| Current - Transmitting [Min] | 20.8 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK, DSSS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | PCB Module |
| Power - Output | 4 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -97 dBm |
| Serial Interfaces | SPI |
| Utilized IC / Part | CYRF7936 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AW24MCHL-SM
General ISM > 1GHz Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
