ZX75BP-A70-S+
ActiveMINI-CIRCUITS
RF FILTER BAND PASS 70MHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZX75BP-A70-S+
ActiveMINI-CIRCUITS
RF FILTER BAND PASS 70MHZ MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZX75BP-A70-S+ |
|---|---|
| Bandwidth | 16 MHz |
| Filter Type | Band Pass |
| Frequency | 70 MHz |
| Height (Max) | 12.45 mm |
| Height (Max) [Max] | 0.49 in |
| Insertion Loss | 1.6 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension [x] | 1.2 " |
| Size / Dimension [x] | 30.48 mm |
| Size / Dimension [y] | 19.05 mm |
| Size / Dimension [y] | 0.75 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 106.18 | |
| 10 | $ 94.03 | |||
| 25 | $ 92.52 | |||
| 50 | $ 92.08 | |||
Description
General part information
ZX75BP-A70-S+

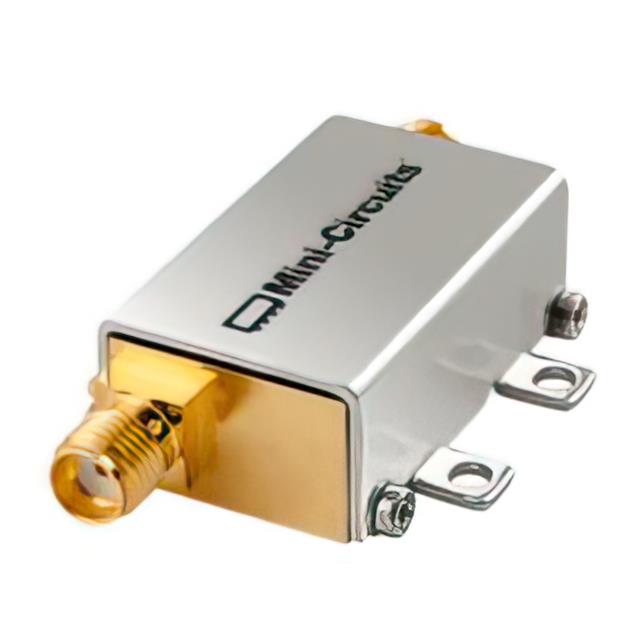

70MHz Center Frequency Band Pass RF Filter (Radio Frequency) 16MHz Bandwidth 1.6dB Module, SMA Connectors
