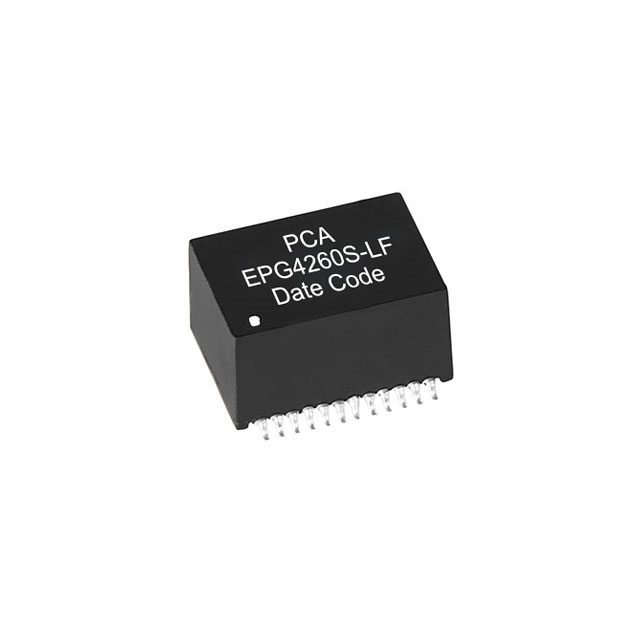

EPG4260S-LF
ActivePCA Electronics, Inc.
POE DATA XFM, 1.15A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPG4260S-LF
ActivePCA Electronics, Inc.
POE DATA XFM, 1.15A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPG4260S-LF |
|---|---|
| Height - Seated (Max) [Max] [z] | 0.4 in |
| Height - Seated (Max) [Max] [z] | 10.16 mm |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 0.71 " |
| Size / Dimension [x] | 18.03 mm |
| Size / Dimension [y] | 15.24 mm |
| Size / Dimension [y] | 0.6 in |
| Transformer Type | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.98 | |
| 5 | $ 8.87 | |||
| 10 | $ 7.64 | |||
| 25 | $ 6.52 | |||
| 50 | $ 5.33 | |||
| 100 | $ 3.72 | |||
| 250 | $ 2.90 | |||
Description
General part information
EPG4260S-LF
350µH LAN 10/100/1000 Base-T, Power over Ethernet (PoE) Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
