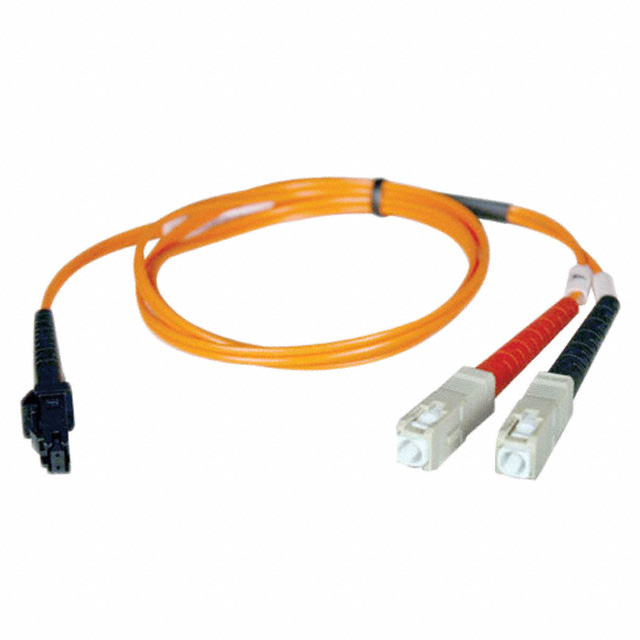

N310-05M
ActiveTripp Lite
FIBER OPTIC CABLE, 5 M, 62.5ΜM / 125ΜM, MULTIMODE, 2 FIBERS, MT-RJ TO SC DUPLEX
Deep-Dive with AI
Search across all available documentation for this part.
N310-05M
ActiveTripp Lite
FIBER OPTIC CABLE, 5 M, 62.5ΜM / 125ΜM, MULTIMODE, 2 FIBERS, MT-RJ TO SC DUPLEX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | N310-05M |
|---|---|
| 1st Connector | SC Duplex |
| 2nd Connector | MT-RJ |
| Cable Type | Twin Zip |
| Color - Cable | Orange |
| Color - Connectors | Beige, Black |
| Features | Zipcord, Riser |
| Fiber Type | 62.5/125 |
| Insertion Loss | 0.2 dB |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall | 5 m |
| Length - Overall | 16.4 ft |
| Ratings | OFNR, FDDI |
| Type | Multimode, Duplex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
N310-05M
Multimode duplex fibre optic MTRJ/SC patch cable is manufactured from 62.5/125 zipcord fibre. The cable has MTRJ to SC connectors, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fibre is most commonly used in LAN applications.
Documents
Technical documentation and resources
