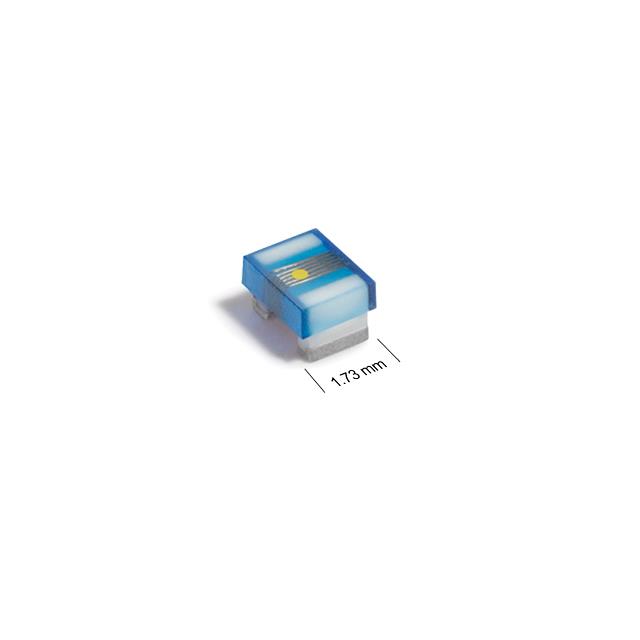

0805CS-682XJRC
ActiveCoilcraft
FIXED IND 6.8UH 80MA 9.8OHM SM
Deep-Dive with AI
Search across all available documentation for this part.
0805CS-682XJRC
ActiveCoilcraft
FIXED IND 6.8UH 80MA 9.8OHM SM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0805CS-682XJRC |
|---|---|
| Current Rating (Amps) | 80 mA |
| DC Resistance (DCR) [Max] | 9.8 Ohm |
| Frequency - Self Resonant | 250 MHz |
| Height - Seated (Max) [Max] [z] | 1.52 mm |
| Height - Seated (Max) [Max] [z] | 0.06 " |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0805 |
| Q @ Freq | 20 |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension [x] | 2.29 mm |
| Size / Dimension [x] | 0.09 " |
| Size / Dimension [y] | 0.068 in |
| Size / Dimension [y] | 1.73 mm |
| Supplier Device Package | 0805 |
| Tolerance | 5 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 1.05 | |
| 200 | $ 0.85 | |||
| 500 | $ 0.64 | |||
Description
General part information
0805CS-682XJRC
6.8 µH Unshielded Wirewound Inductor 80 mA 9.8Ohm Max 0805 (2012 Metric)
Documents
Technical documentation and resources
No documents available
