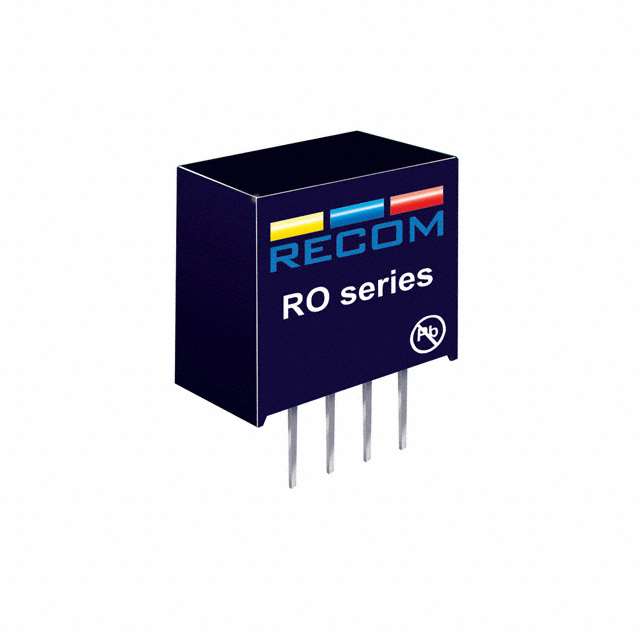

RO-3.305S/EHP

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 3.3VIN 05VOUT CONV DC/DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RO-3.305S/EHP

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 3.3VIN 05VOUT CONV DC/DC

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RO-3.305S/EHP

Applications	ITE (Commercial)
Current - Output (Max) [Max]	200 mA
Efficiency	83 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SIP Module
Size / Dimension [x]	11.5 mm
Size / Dimension [x]	0.45 in
Size / Dimension [y]	6 mm
Size / Dimension [y]	0.24 "
Size / Dimension [z]	0.39 in
Size / Dimension [z]	10 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	3.63 V
Voltage - Input (Min) [Min]	2.97 V
Voltage - Isolation	2000 V
Voltage - Output 1	5 V

RO-3.33.3 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 2kV UNREG 12Vin 9Vout

Part	Features	Package / Case	Applications	Voltage - Output 1	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Mounting Type	Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Number of Outputs	Current - Output (Max) [Max]
RECOM Power RO-0515S/H	SCP	4-SIP Module	ITE (Commercial) Medical	15 V	5.5 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	4.5 V	Through Hole	Isolated Module	2000 V	85 °C	-40 °C	84 %	1	66 mA
RECOM Power RO-2405S/EH	SCP	4-SIP Module	ITE (Commercial)	5 V	26.4 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	21.6 V	Through Hole	Isolated Module	2000 V	100 °C	-40 °C		1	200 mA
RECOM Power RO-053.3S/P	SCP	4-SIP Module	ITE (Commercial)	3.3 V	5.5 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	4.5 V	Through Hole	Isolated Module	1000 V	85 °C	-40 °C	75 %	1	303 mA
RECOM Power RO-3.33.3S/P	SCP	4-SIP Module	ITE (Commercial)	3.3 V	3.6 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	3 V	Through Hole	Isolated Module	1000 V	85 °C	-40 °C	75 %	1	303 mA
RECOM Power RO-123.3S/HP	SCP	4-SIP Module	ITE (Commercial) Medical	3.3 V	13.2 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	10.8 V	Through Hole	Isolated Module	2000 V	85 °C	-40 °C	75 %	1	303 mA
RECOM Power RO-2405S	SCP	4-SIP Module	ITE (Commercial)	5 V	26.4 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	21.6 V	Through Hole	Isolated Module	1000 V	85 °C	-40 °C	80 %	1	200 mA
RECOM Power RO-123.3S	SCP	4-SIP Module	ITE (Commercial)	3.3 V	13.2 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	10.8 V	Through Hole	Isolated Module	1000 V	85 °C	-40 °C	75 %	1	303 mA
RECOM Power RO-0505S/EHP	SCP	4-SIP Module	ITE (Commercial)	5 V	5.5 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	4.5 V	Through Hole	Isolated Module	2000 V	100 °C	-40 °C	84 %	1	200 mA
RECOM Power RO-053.3S/H	SCP	4-SIP Module	ITE (Commercial) Medical	3.3 V	5.5 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	4.5 V	Through Hole	Isolated Module	2000 V	85 °C	-40 °C	75 %	1	303 mA
RECOM Power RO-0512S/H	SCP	4-SIP Module	ITE (Commercial) Medical	12 V	5.5 V	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	4.5 V	Through Hole	Isolated Module	2000 V	85 °C	-40 °C	84 %	1	83 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	42	$ 8.38
Sager	N/A	1	$ 8.94
		5	$ 8.64
		10	$ 8.25
		25	$ 7.98
		50	$ 7.89
		100	$ 7.65
		250	$ 7.15

Description

General part information

RO-3.33.3 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 2kV UNREG 12Vin 9Vout
