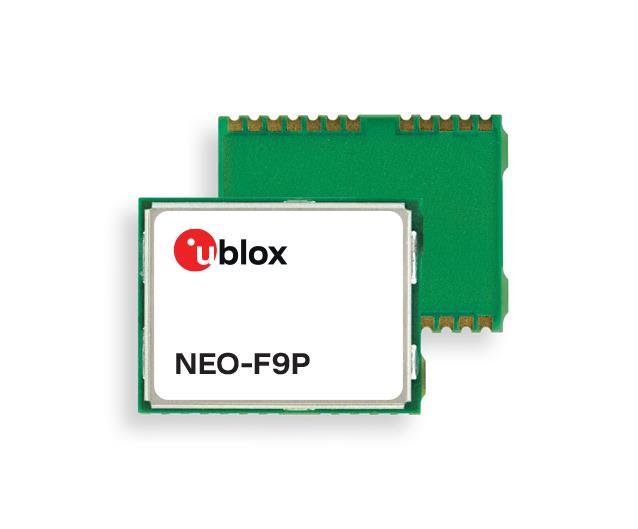

NEO-F9P-15B
Activeu-blox
MULTI-BAND GNSS MOD L1/L5 RTK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NEO-F9P-15B
Activeu-blox
MULTI-BAND GNSS MOD L1/L5 RTK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NEO-F9P-15B |
|---|---|
| Antenna Connector | Not Included |
| Applications | GPS |
| Data Interface | UART, SPI, I2C, USB |
| Data Rate (Max) | 921.6 kbps |
| Modulation or Protocol | GNSS, Galileo, BeiDou, GLONASS, GPS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SMD Module |
| Sensitivity | -167 dBm |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 129.00 | |
| 10 | $ 114.11 | |||
| 50 | $ 109.63 | |||
| Digi-Reel® | 1 | $ 129.00 | ||
| 10 | $ 114.11 | |||
| 50 | $ 109.63 | |||
| Tape & Reel (TR) | 250 | $ 103.04 | ||
Description
General part information
NEO-F9P-15B
- RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS -167dBm 921.6kbps Not Included
