30-02654
ActiveTensility International Corp
CBL 5CON 18AWG BLK BIO
Deep-Dive with AI
Search across all available documentation for this part.
30-02654
ActiveTensility International Corp
CBL 5CON 18AWG BLK BIO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 30-02654 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | High Density Polyethylene (HDPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 65 |
| Conductor Strand [diameter] | 0.005 in |
| Features | Biological Compatibility |
| Jacket (Insulation) Diameter [diameter] | 5.99 mm |
| Jacket (Insulation) Diameter [diameter] | 0.236 in |
| Jacket (Insulation) Material | Thermoplastic Polyurethane (TPU) |
| Jacket (Insulation) Thickness | 0.0276 in |
| Jacket (Insulation) Thickness | 0.7 mm |
| Jacket Color | Black |
| Length | 502 ft |
| Length | 153 m |
| Number of Conductors | 5 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | ISO 10993 |
| Voltage | 150 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1530 | $ 6.96 | |
Description
General part information
30-02654

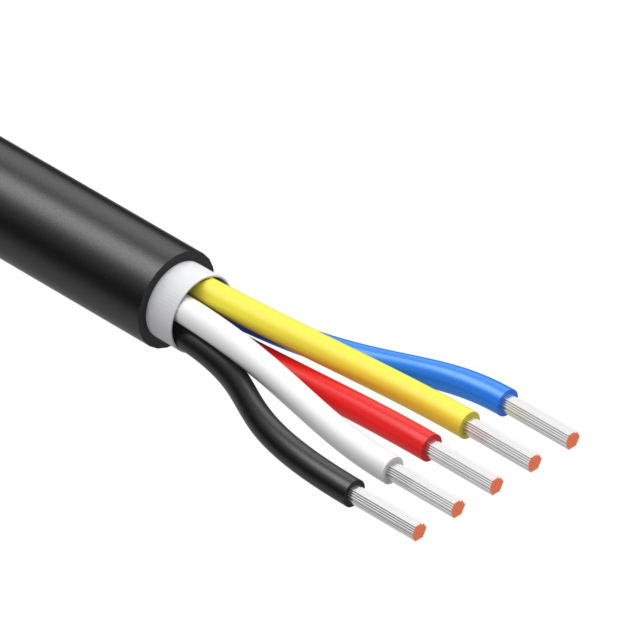

5 Conductor Multi-Conductor Cable Black 18 AWG 502.0' (153.0m)
Documents
Technical documentation and resources
No documents available
