XGL1010-223MED
ActiveCoilcraft
FIXED IND 22UH 13.2A 22MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XGL1010-223MED
ActiveCoilcraft
FIXED IND 22UH 13.2A 22MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XGL1010-223MED |
|---|---|
| Current - Saturation (Isat) | 13 A |
| Current Rating (Amps) | 13.2 A |
| Frequency - Self Resonant | 8 MHz |
| Height - Seated (Max) [Max] | 0.394 in |
| Height - Seated (Max) [Max] | 10 mm |
| Inductance | 22 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal Composite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.445 " |
| Size / Dimension [x] | 11.3 mm |
| Size / Dimension [y] | 0.394 in |
| Size / Dimension [y] | 10 mm |
| Tolerance | 20 % |
| Type | Molded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XGL1010-223MED

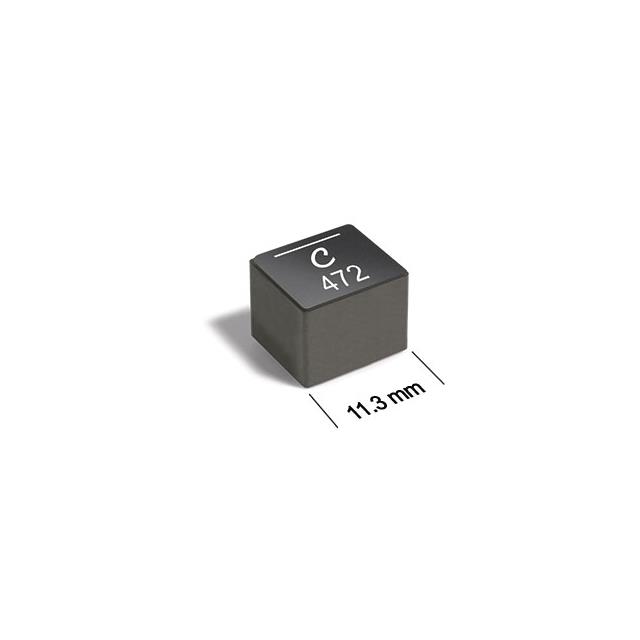

22 µH Shielded Molded Inductor 13.2 A 22mOhm Max Nonstandard
