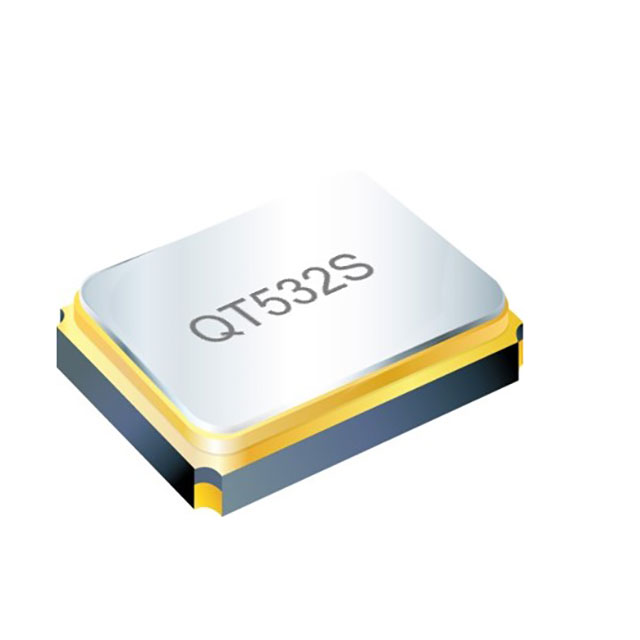

QT532S-36.000MBBK-T
ActiveQST
5.0X3.2 , +/-50PPM , +/-50PPM (-
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QT532S-36.000MBBK-T
ActiveQST
5.0X3.2 , +/-50PPM , +/-50PPM (-
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QT532S-36.000MBBK-T |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohms |
| Frequency | 36 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 0.52 | |
| 10 | $ 0.45 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.24 | |||
| 3000 | $ 0.21 | |||
| 10000 | $ 0.19 | |||
| 25000 | $ 0.18 | |||
Description
General part information
QT532S-36.000MBBK-T
36 MHz ±50ppm Crystal 20pF 40 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
