HMD9120E
ActiveSOSHIN ELECTRIC CO., LTD.
LTCC RF DIPLEXLER 2450MHZ/ 5550M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HMD9120E
ActiveSOSHIN ELECTRIC CO., LTD.
LTCC RF DIPLEXLER 2450MHZ/ 5550M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HMD9120E |
|---|---|
| Frequency Bands (Low / High) [Max] | 2.5 GHz, 5.1 GHz, 5.95 GHz |
| Frequency Bands (Low / High) [Min] | 4.9 GHz, 5.15 GHz, 2.4 GHz |
| Grade | Automotive |
| High Band Attenuation (min / max dB) [Max] | 2.5 dB |
| High Band Attenuation (min / max dB) [Min] | 2 dB |
| Low Band Attenuation (min / max dB) [Max] | 31.5 dB |
| Low Band Attenuation (min / max dB) [Min] | 22 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0603 |
| Package / Case | 1608 |
| Package / Case | 6 Leads |
| Qualification | AEC-Q200 |
| Return Loss (Low Band / High Band) [custom] | 10 dB |
| Return Loss (Low Band / High Band) [custom] | 10 dB |
| Type | Diplexer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.09 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.67 | |||
| Digi-Reel® | 1 | $ 1.09 | ||
| 10 | $ 0.80 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.76 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.67 | |||
| Tape & Reel (TR) | 500 | $ 0.62 | ||
| 1000 | $ 0.58 | |||
| 1500 | $ 0.56 | |||
| 2500 | $ 0.53 | |||
| 3500 | $ 0.52 | |||
| 5000 | $ 0.50 | |||
| 12500 | $ 0.46 | |||
Description
General part information
HMD9120E

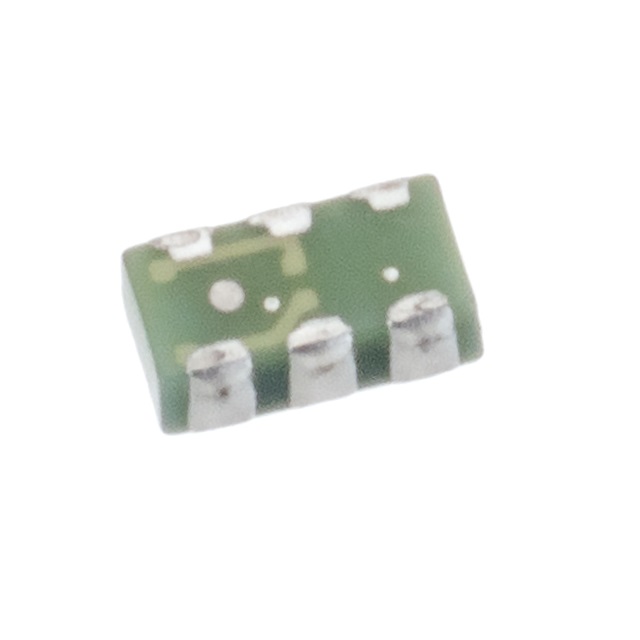

RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz 0603 (1608 Metric), 6 PC Pad
