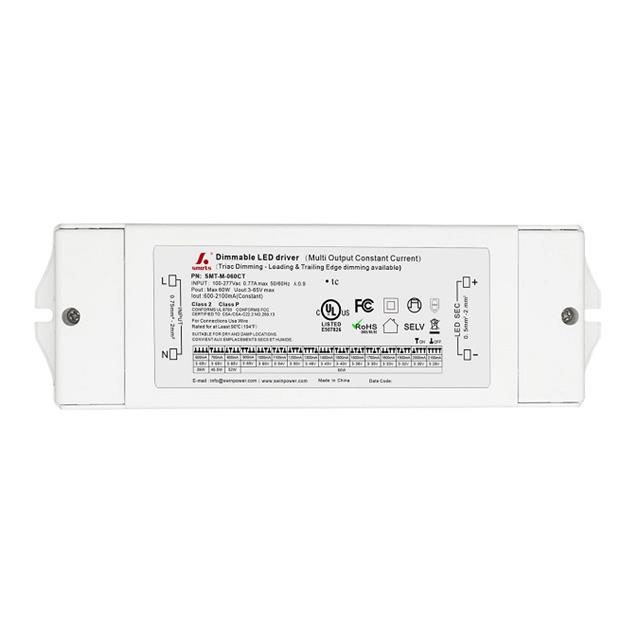

SMT-M-060CT
ActiveSmarts Electronic & Technology
CC AC/DC 3-65V PGM O/P 0.6-2.1A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMT-M-060CT
ActiveSmarts Electronic & Technology
CC AC/DC 3-65V PGM O/P 0.6-2.1A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-M-060CT |
|---|---|
| Approval Agency | cULus, FCC |
| Current - Output (Max) [Max] | 2.1 A |
| Dimming | TRIAC |
| Efficiency | 80 % |
| Features | OCP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 60 W |
| Ratings | IP20 |
| Size / Dimension [x] | 174.9 mm |
| Size / Dimension [x] | 6.89 in |
| Size / Dimension [y] | 2.44 " |
| Size / Dimension [y] | 62 mm |
| Size / Dimension [z] | 0.94 in |
| Size / Dimension [z] | 24 mm |
| Standard Number | UL 8750 |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 65 V |
| Voltage - Output [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 45.22 | |
| 5 | $ 42.84 | |||
| 10 | $ 40.46 | |||
| 25 | $ 38.68 | |||
| 50 | $ 36.89 | |||
| 100 | $ 35.70 | |||
| 250 | $ 32.73 | |||
Description
General part information
SMT-M-060CT
2.1A 3 ~ 65V Constant Current LED Driver AC DC Converter Topology 1 Output
