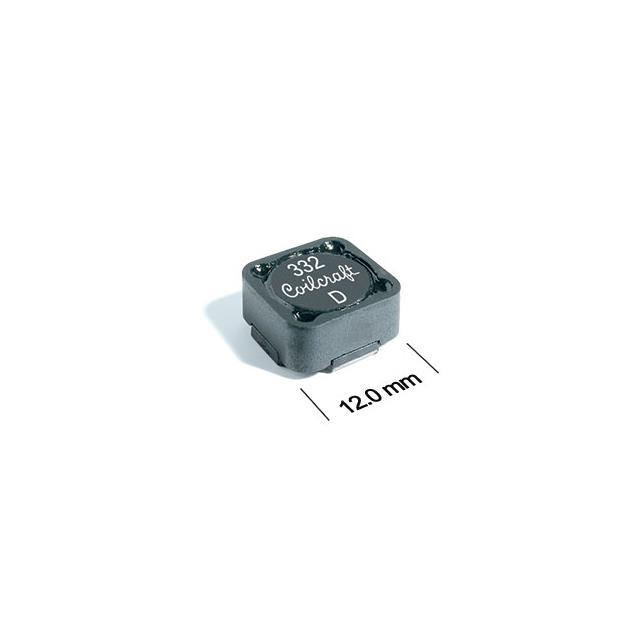

MSS1260-104MLD
ActiveCoilcraft
FIXED IND 100UH 2.1A 146MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSS1260-104MLD
ActiveCoilcraft
FIXED IND 100UH 2.1A 146MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSS1260-104MLD |
|---|---|
| Current - Saturation (Isat) | 1.88 A |
| Current Rating (Amps) | 2.1 A |
| DC Resistance (DCR) | 146 mOhm |
| Frequency - Self Resonant | 7.8 MHz |
| Height - Seated (Max) [Max] [z] | 6.2 mm |
| Height - Seated (Max) [Max] [z] | 0.244 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.472 in |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Size / Dimension [y] | 12 mm |
| Tolerance | 20 % |
| Type | Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MSS1260-104MLD
100 µH Shielded Drum Core Inductor 2.1 A 146mOhm Nonstandard
