Technical Specifications
Parameters and characteristics for this part
| Specification | R0.25D10-1512/P |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 10.4 mA |
| Efficiency [Max] | 70 % |
| Efficiency [Min] | 60 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module |
| Power (Watts) | 250 mW |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [y] | 10.7 mm |
| Size / Dimension [y] | 0.42 " |
| Size / Dimension [z] | 0.28 " |
| Size / Dimension [z] | 7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 16.5 V |
| Voltage - Input (Min) [Min] | 13.5 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

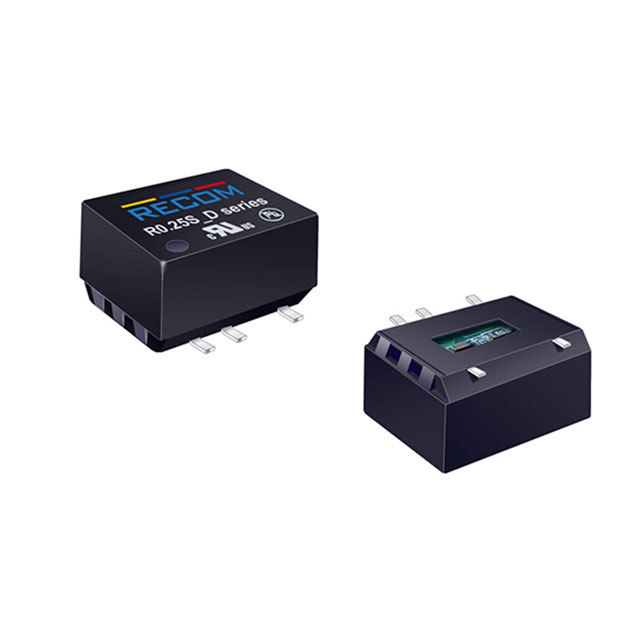

R0.25D10-1512/P
Isolated Module DC DC Converter 2 Output 12V -12V 10.4mA, 10.4mA 13.5V - 16.5V Input
