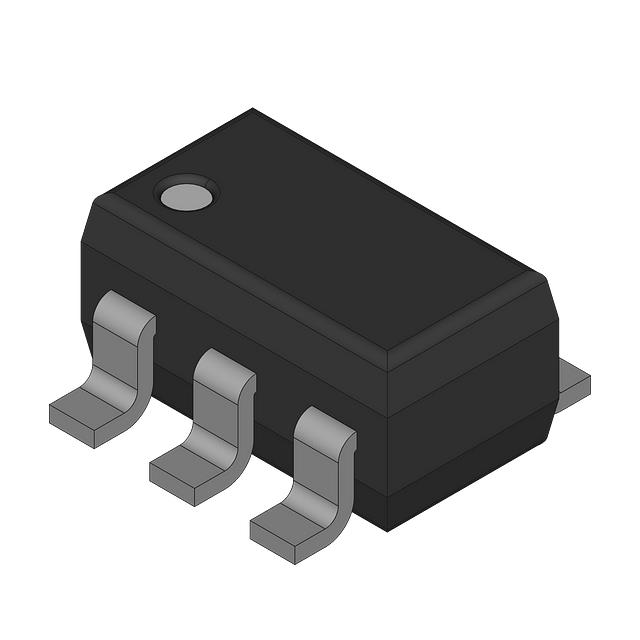

MAX8888EZK25+
ActiveAnalog Devices Inc./Maxim Integrated
IC REG LINEAR LDO 300MA
Deep-Dive with AI
Search across all available documentation for this part.
MAX8888EZK25+
ActiveAnalog Devices Inc./Maxim Integrated
IC REG LINEAR LDO 300MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MAX8888EZK25+ |
|---|---|
| Control Features | Enable, Power Good |
| Current - Output | 300 mA |
| Current - Quiescent (Iq) | 100 µA |
| Current - Supply (Max) [Max] | 65 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Protection Features | Over Temperature, Over Current, Short Circuit |
| PSRR | 40 dB |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 256 | $ 1.18 | |
Description
General part information
MAX8888EZK25+
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA TSOT-23-5
Documents
Technical documentation and resources
No documents available
