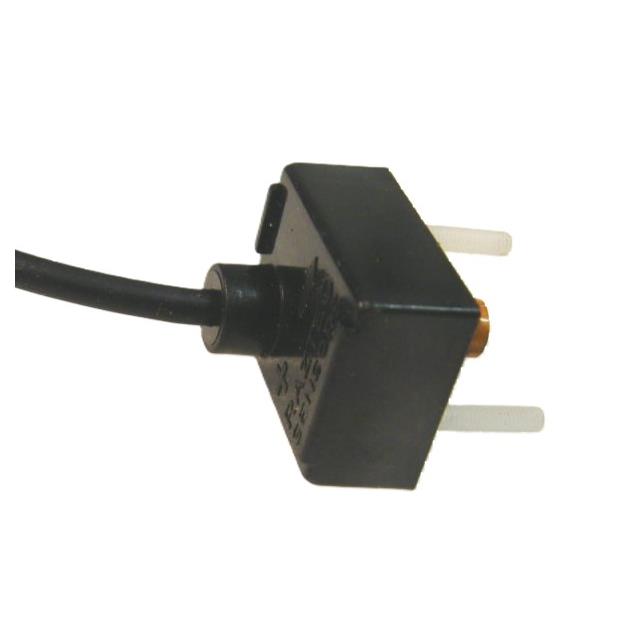

RAZP-2000
ActiveRaztec Sensors
2000A CURRENT PROBE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAZP-2000
ActiveRaztec Sensors
2000A CURRENT PROBE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAZP-2000 |
|---|---|
| Accuracy | 1 % |
| Current - Sensing | 2000 A |
| Current - Supply (Max) [Max] | 25 mA |
| For Measuring | AC/DC |
| Frequency | 350 kHz |
| Linearity | 0.1 % |
| Mounting Type | Screw |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Polarization | Bidirectional |
| Response Time | 0.1 µs |
| Sensitivity | 1 mV/A |
| Sensor Type | Hall Effect, Open Loop |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 91.98 | |
Description
General part information
RAZP-2000
Current Sensor 2000A 1 Channel Hall Effect, Open Loop Bidirectional
