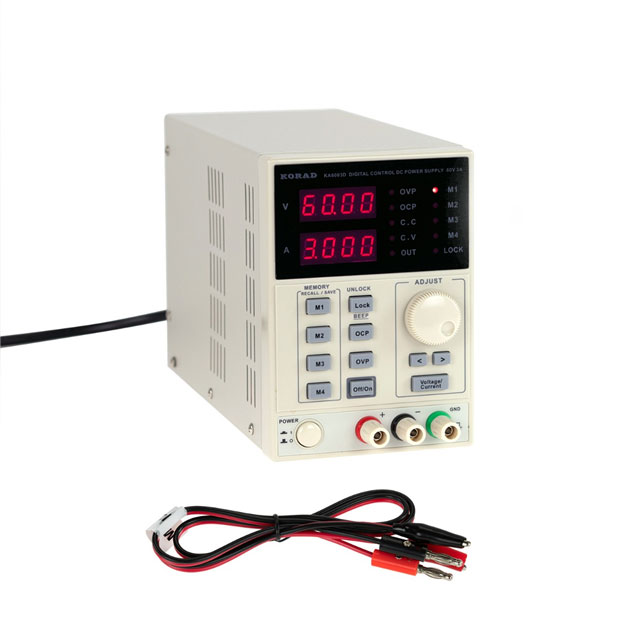

KA6003D
ActiveSRA Soldering Products
POWER SUPPLY, 60V, 3A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KA6003D
ActiveSRA Soldering Products
POWER SUPPLY, 60V, 3A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KA6003D |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.5% + 300mV, 0.5% + 10mA |
| Current - Output | 3 A |
| Current Regulation - Line | 0.1 %, 3 mA |
| Current Regulation - Load | 5 mA, 0.1 % |
| Display Type | Digital |
| Features | Dual Displays, Constant Current and Constant Voltage Indicators |
| Number of Characters | 4 |
| Number of Outputs | 1 |
| Ripple | 1 mV, 3 mVrms |
| Size / Dimension [x] | 10.25 " |
| Size / Dimension [x] | 260.35 mm |
| Size / Dimension [y] | 220.22 mm |
| Size / Dimension [y] | 8.67 in |
| Size / Dimension [z] | 154.94 mm |
| Size / Dimension [z] | 6.1 in |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 60 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply | 230 VAC |
| Voltage - Supply | 115 VAC |
| Voltage Regulation - Line | 0.01 %, 3 mV |
| Voltage Regulation - Load | 0.01 %, 2 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 138.10 | |
Description
General part information
KA6003D
0 ~ 60V Output Bench (AC to DC) Power Supply Digital 3A Output Features Constant Current and Constant Voltage Indicators, Dual Displays
