EPLB32F103
ActiveEI Sensor Technologies
THERMISTOR, EPOXY, 10K 1%, ENAME
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPLB32F103
ActiveEI Sensor Technologies
THERMISTOR, EPOXY, 10K 1%, ENAME
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPLB32F103 |
|---|---|
| B25/50 | 3950 K |
| B25/85 | 4007 K |
| Mounting Type | Free Hanging |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | Bead, Epoxy |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 5 | $ 0.92 | |||
| 10 | $ 0.85 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.67 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.52 | |||
| 5000 | $ 0.44 | |||
Description
General part information
EPLB32F103

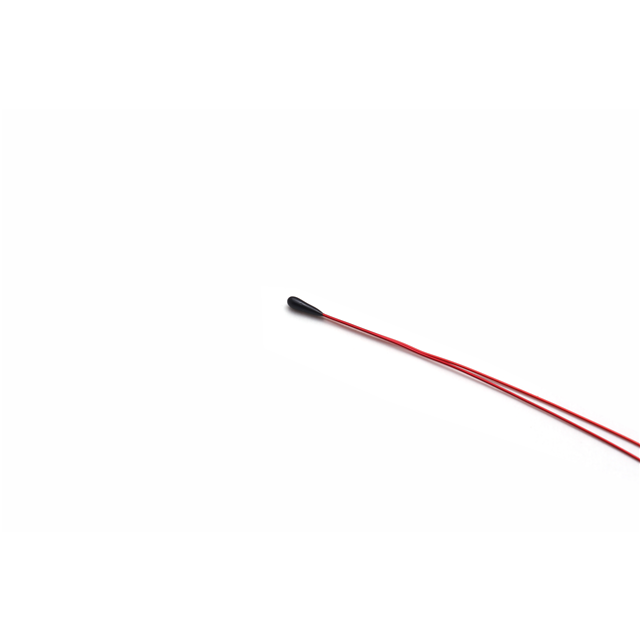

NTC Thermistor 10k Bead, Epoxy
Documents
Technical documentation and resources
