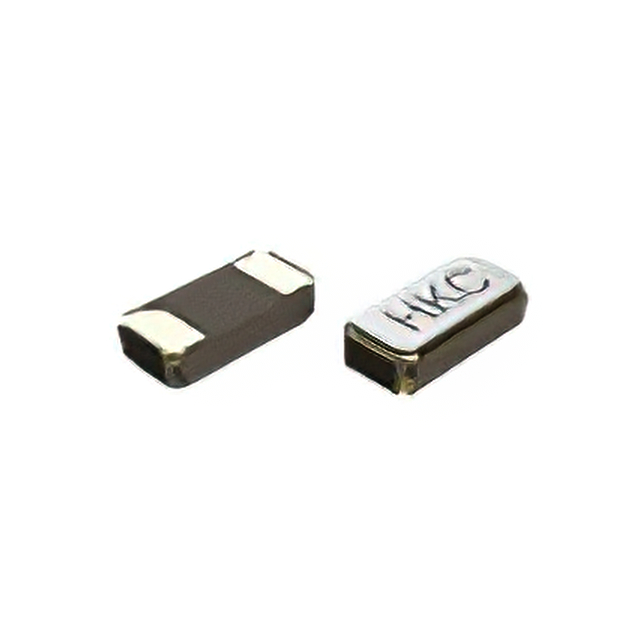

HKA3215SX-32.768KHZ-33879-R4V1
ActiveHong Kong Automotive X’tals Limited
QUARTZ CRYSTAL 32.768KHZ 7PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HKA3215SX-32.768KHZ-33879-R4V1
ActiveHong Kong Automotive X’tals Limited
QUARTZ CRYSTAL 32.768KHZ 7PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HKA3215SX-32.768KHZ-33879-R4V1 |
|---|---|
| ESR (Equivalent Series Resistance) | 70 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Load Capacitance | 7 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.64 | |
| 10 | $ 1.56 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.31 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.07 | |||
| Digi-Reel® | 1 | $ 1.64 | ||
| 10 | $ 1.56 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.31 | |||
| 500 | $ 1.27 | |||
| 1000 | $ 1.07 | |||
| Tape & Reel (TR) | 3000 | $ 1.02 | ||
| 6000 | $ 0.98 | |||
Description
General part information
HKA3215SX-32.768KHZ-33879-R4V1
32.768 kHz ±20ppm Crystal 7pF 70 kOhms 2-SMD, No Lead
