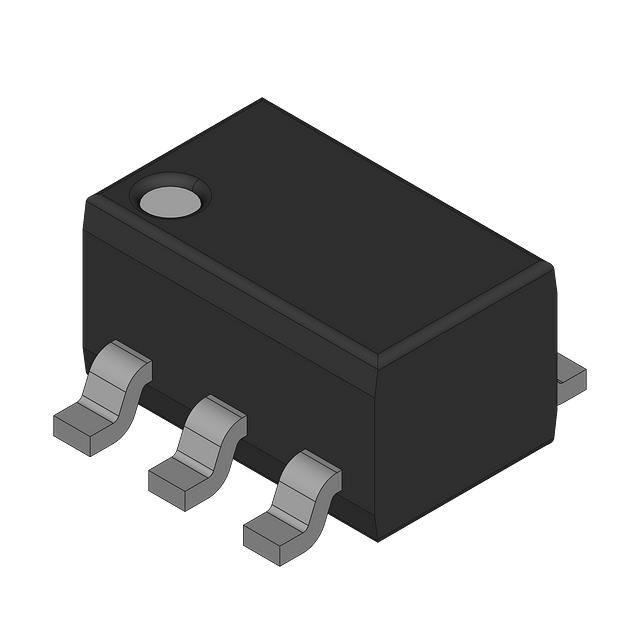

ISL9003AIENZ-T
ActiveIntersil
FIXED POSITIVE LDO REGULATOR, 3.
Deep-Dive with AI
Search across all available documentation for this part.
ISL9003AIENZ-T
ActiveIntersil
FIXED POSITIVE LDO REGULATOR, 3.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISL9003AIENZ-T |
|---|---|
| Control Features | Enable |
| Current - Output | 150 mA |
| Current - Supply (Max) [Max] | 57 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SC-70-5, 5-TSSOP, SOT-353 |
| Protection Features | Soft Start, Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Supplier Device Package | SC-70-5 |
| Voltage - Input (Max) [Max] | 6.5 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) [Max] | 0.325 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 392 | $ 0.77 | |
| Cut Tape (CT) | 1 | $ 1.58 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.34 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.78 | |||
| Digi-Reel® | 1 | $ 1.58 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.34 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.07 | |||
| 500 | $ 0.94 | |||
| 1000 | $ 0.78 | |||
| Tape & Reel (TR) | 3000 | $ 0.75 | ||
| 6000 | $ 0.71 | |||
| 9000 | $ 0.69 | |||
| 15000 | $ 0.66 | |||
Description
General part information
ISL9003AIENZ-T
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SC-70-5
Documents
Technical documentation and resources
No documents available
