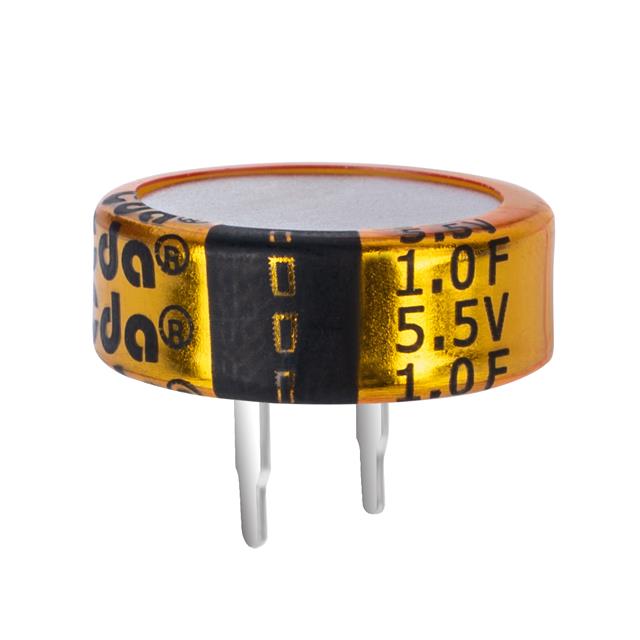

CE5R5105CF-ZJ
ActiveZhi Feng Wei Technology
CAP 1.0F -20% +80% 5.5V T/C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CE5R5105CF-ZJ |
|---|---|
| Capacitance | 1 F |
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Height - Seated (Max) [Max] [z] | 0.295 in |
| Height - Seated (Max) [Max] [z] | 7.5 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Radial, Can |
| Size / Dimension | 21 mm |
| Size / Dimension [diameter] | 0.827 in |
| Termination | PC Pins |
| Tolerance [Max] | 80 % |
| Tolerance [Min] | -20 % |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.91 | |
| 10 | $ 2.60 | |||
| 50 | $ 2.07 | |||
| 100 | $ 1.90 | |||
| 500 | $ 1.62 | |||
| 1000 | $ 1.53 | |||
| 2500 | $ 1.44 | |||
| 5000 | $ 1.38 | |||
Description
General part information
CE5R5105CF-ZJ
1 F (EDLC) Supercapacitor 5.5 V Radial, Can 30Ohm @ 1kHz 1000 Hrs @ 70°C
