CVCO55CC-3350-3500
ActiveCrystek Corporation

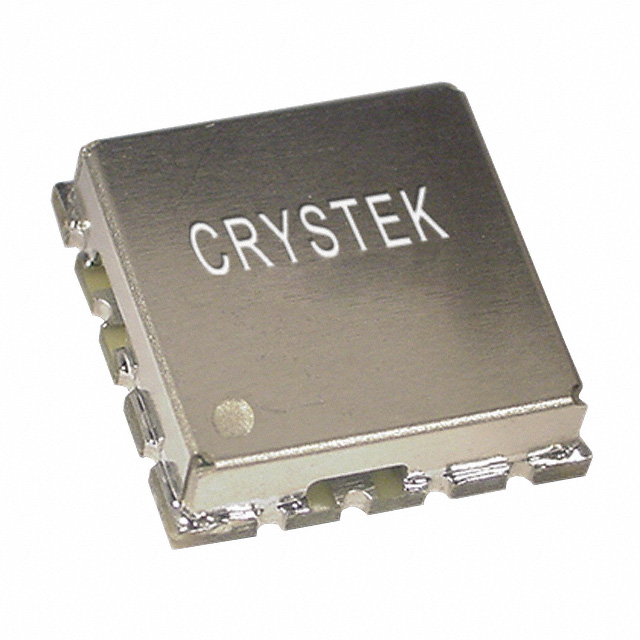

VCO 3425MHZ 0.1-16V 12.7X12.7MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CVCO55CC-3350-3500
ActiveCrystek Corporation
VCO 3425MHZ 0.1-16V 12.7X12.7MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CVCO55CC-3350-3500 |
|---|---|
| 2nd Harmonic, Typ (dBc) | -15 dBc |
| Frequency - Center | 3425 MHz |
| Frequency Range [Max] | 3.5 GHz |
| Frequency Range [Min] | 3.35 GHz |
| Height [z] | 5.59 mm |
| Height [z] | 0.22 in |
| Icc Max [Max] | 40 mA |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-QFN, Variant |
| Phase Noise Typ (dBc/Hz) | -108 dBc/Hz |
| Power (dBm) | 5 dBm |
| Pushing (MHz/V) | 2 MHz/V |
| Tuning Voltage (VDC) [Max] | 16 V |
| Tuning Voltage (VDC) [Min] | 0.1 V |
| Voltage - Supply | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 36.30 | |
Description
General part information
CVCO55CC-3350-3500
3425MHz Center Frequency 0.1 V ~ 16 V Voltage Controlled Oscillator 5 ±2 dBm -15 2nd Harmonic Typ (dBc)
