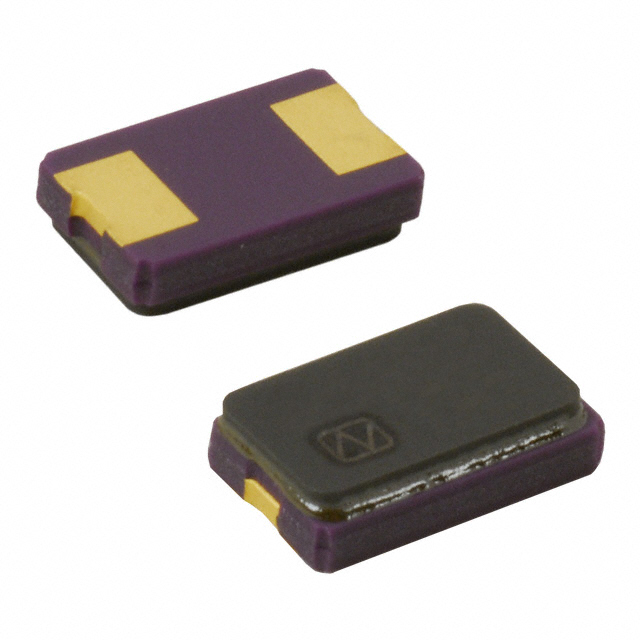

LNCD1-16M
ActiveNDK America, Inc.
CRYSTAL 16.0000MHZ 8PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LNCD1-16M
ActiveNDK America, Inc.
CRYSTAL 16.0000MHZ 8PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LNCD1-16M |
|---|---|
| Frequency | 16 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) [Max] | 1.5 mm |
| Height - Seated (Max) [Max] [z] | 0.059 " |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.50 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.39 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.50 | |||
| 50 | $ 0.45 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.39 | |||
| Tape & Reel (TR) | 1000 | $ 0.37 | ||
| 2000 | $ 0.36 | |||
| 3000 | $ 0.35 | |||
| 5000 | $ 0.34 | |||
| 7000 | $ 0.33 | |||
| 10000 | $ 0.32 | |||
| 25000 | $ 0.30 | |||
Description
General part information
LNCD1-16M
16 MHz ±50ppm Crystal 8pF 120 Ohms 2-SMD, No Lead
