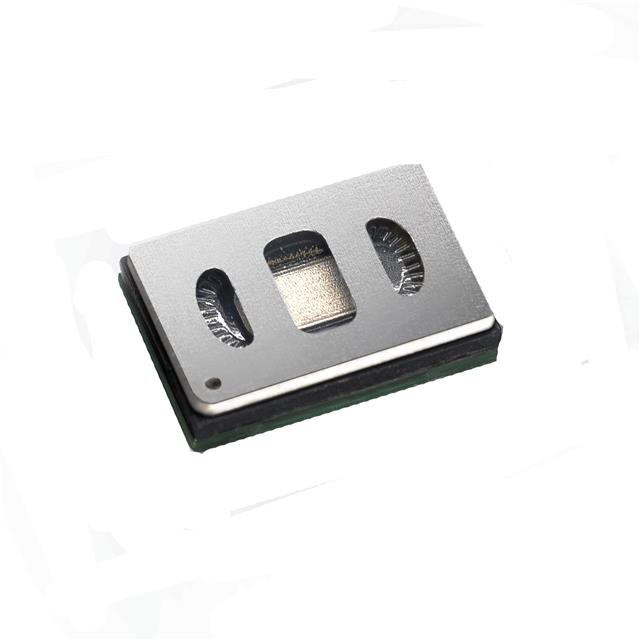

UT-P2020
ActiveUSound GmbH
SPEAKER TOP PORT RECT MEMS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UT-P2020
ActiveUSound GmbH
SPEAKER TOP PORT RECT MEMS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UT-P2020 |
|---|---|
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 2.7 kHz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 20 Hz |
| Height - Seated (Max) [Max] [z] | 0.062 in |
| Height - Seated (Max) [Max] [z] | 1.58 mm |
| Port Location | Top |
| Shape | Rectangular |
| Size / Dimension [x] | 0.264 " |
| Size / Dimension [x] | 6.7 mm |
| Size / Dimension [y] | 4.7 mm |
| Size / Dimension [y] | 0.185 in |
| Technology | Piezo |
| Termination | Solder Pads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.57 | |
| 10 | $ 11.11 | |||
| 25 | $ 10.21 | |||
| 40 | $ 9.56 | |||
| 80 | $ 8.93 | |||
| 440 | $ 8.74 | |||
Description
General part information
UT-P2020
General Purpose Speaker 20 Hz ~ 20 kHz Top Rectangular
Documents
Technical documentation and resources
