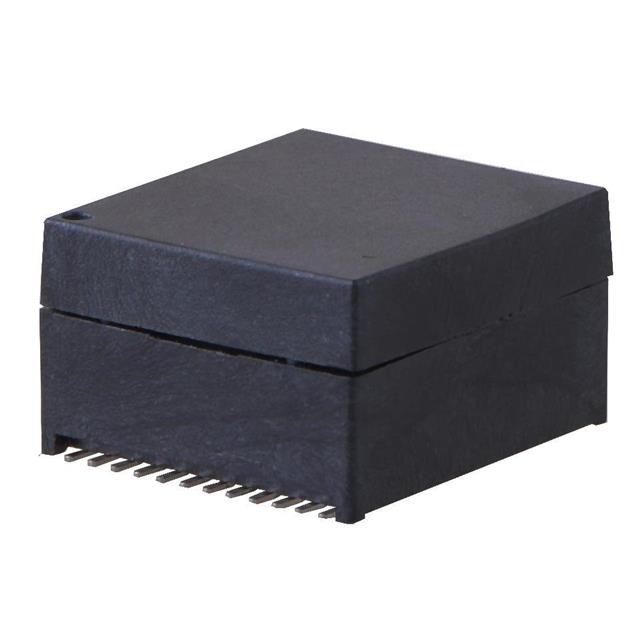

KTFZ-DMS2401CB1-HA1
ActiveKinnexA
TRANSFORMER LAN SINGLE 24PIN STD
Deep-Dive with AI
Search across all available documentation for this part.
KTFZ-DMS2401CB1-HA1
ActiveKinnexA
TRANSFORMER LAN SINGLE 24PIN STD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KTFZ-DMS2401CB1-HA1 |
|---|---|
| Height - Seated (Max) [Max] [z] | 0.334 " |
| Height - Seated (Max) [Max] [z] | 8.48 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 15.24 mm |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [y] | 15 mm |
| Size / Dimension [y] | 0.591 in |
| Transformer Type | LAN 10G Base-T |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.73 | |
| 10 | $ 5.23 | |||
| 50 | $ 4.40 | |||
| 100 | $ 4.18 | |||
| 500 | $ 3.83 | |||
| 1000 | $ 3.76 | |||
Description
General part information
KTFZ-DMS2401CB1-HA1
LAN 10G Base-T Pulse Transformer Surface Mount
Documents
Technical documentation and resources
No documents available
