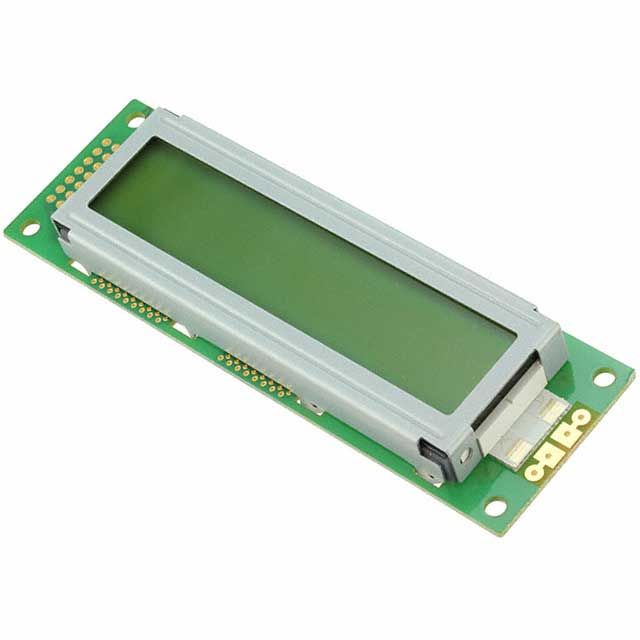

DMC-20261NY-LY-CME-CPN
ObsoleteKyocera International, Inc.
LCD MOD 40DIG 20X2 TRANS YLW/GRN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DMC-20261NY-LY-CME-CPN
ObsoleteKyocera International, Inc.
LCD MOD 40DIG 20X2 TRANS YLW/GRN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DMC-20261NY-LY-CME-CPN |
|---|---|
| Background Color | Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.2 mm |
| Character Size [z] | 5.55 mm |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [custom] | 0.6 mm |
| Dot Size [custom] | 0.65 mm |
| Interface | Parallel |
| Number of Characters | 40 |
| Outline L x W x H [x] | 116 mm |
| Outline L x W x H [y] | 37 mm |
| Outline L x W x H [z] | 15.7 mm |
| Text Color | Yellow |
| Viewing Area [x] | 83 mm |
| Viewing Area [y] | 18.6 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DMC-20261NY-LY-CME-CPN
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 116.00mm x 37.00mm x 15.70mm
