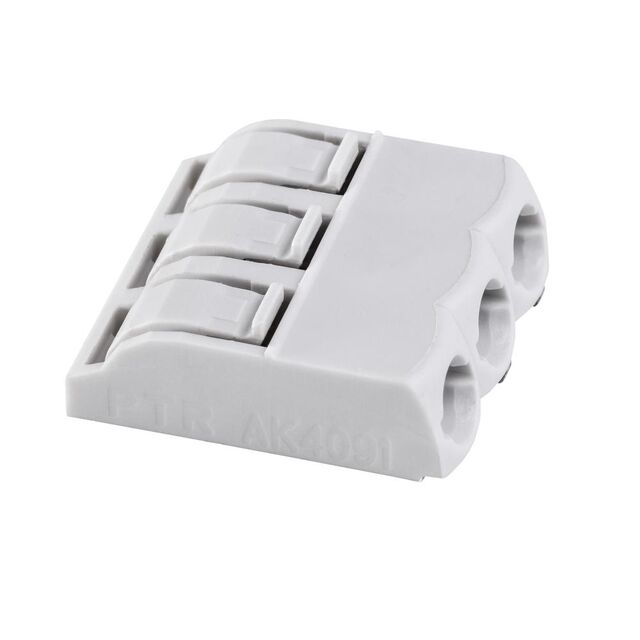

AK4091/1KD-4.0-WH-SMD
ActivePTR HARTMANN
TERM BLK 1POS 4.0MM 0.157" PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AK4091/1KD-4.0-WH-SMD |
|---|---|
| Color | White |
| Current | 9 A |
| Housing Material | Polyphthalamide (PPA) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Operating Temperature [custom] | -60 °C, 105 °C |
| Positions Per Level | 1 |
| Voltage | 600 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 17.5 AWG |
| Wire Termination | Push-In Spring, Screwless - Leg Spring |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1500 | $ 0.32 | |
| 3000 | $ 0.29 | |||
| 7500 | $ 0.28 | |||
| 10500 | $ 0.28 | |||
| 15000 | $ 0.27 | |||
| 37500 | $ 0.27 | |||
Description
General part information
AK4091/1KD-4.0-WH-SMD
1 Position Wire to Board Terminal Block Horizontal with Board Surface Mount
