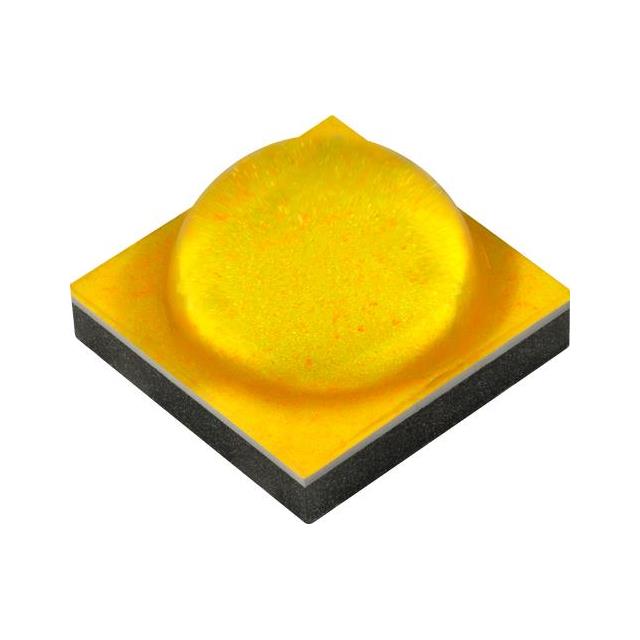

XPGEWT-01-0000-00000BP2E
ActiveCree LED
LED XLAMP COOL WHITE 5700K 1414
Deep-Dive with AI
Search across all available documentation for this part.
XPGEWT-01-0000-00000BP2E
ActiveCree LED
LED XLAMP COOL WHITE 5700K 1414
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XPGEWT-01-0000-00000BP2E |
|---|---|
| CCT (K) | 5700 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max [Max] | 3 A |
| Flux @ 25°C, Current - Test | 360 lm |
| Flux @ 85°C, Current - Test | 33 |
| Height - Seated (Max) [Max] [z] | 2.39 mm |
| Height - Seated (Max) [Max] [z] | 0.094 " |
| Lumens/Watt @ Current - Test | 171 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Size / Dimension [x] | 3.45 mm |
| Size / Dimension [x] | 0.136 in |
| Size / Dimension [y] | 0.136 in |
| Size / Dimension [y] | 3.45 mm |
| Supplier Device Package | 1414 |
| Thermal Resistance of Package [custom] | 1.3 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 1.00 | |
Description
General part information
XPGEWT-01-0000-00000BP2E
LED Lighting XLamp® XP-G4 White, Cool 5700K 5-Step MacAdam Ellipse 2.8V 700mA 120° 1414 (3535 Metric)
Documents
Technical documentation and resources
No documents available
