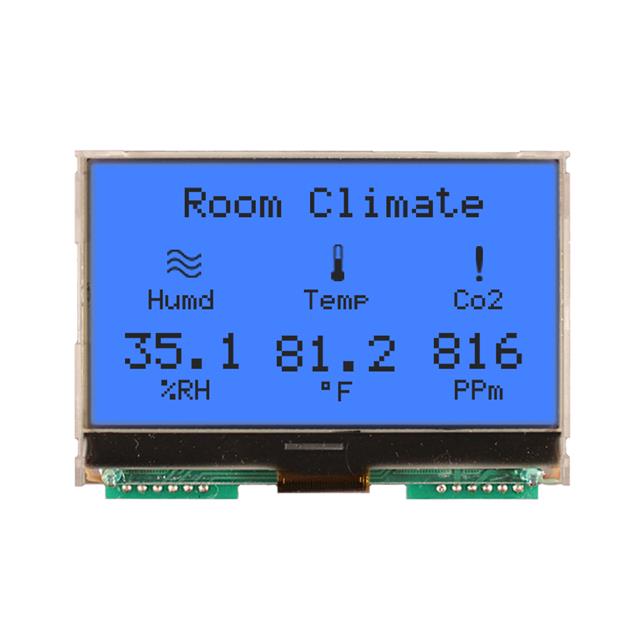

NHD-C12864A1Z-FSB-FBW-HTT
ActiveNewhaven Display Intl
LCD COG GRAPH 128X64 BLUE BKLT
Deep-Dive with AI
Search across all available documentation for this part.
NHD-C12864A1Z-FSB-FBW-HTT
ActiveNewhaven Display Intl
LCD COG GRAPH 128X64 BLUE BKLT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-C12864A1Z-FSB-FBW-HTT |
|---|---|
| Background Color | Blue (Black - Inverted) |
| Backlight | LED - Blue |
| Controller Type | ST-7565V |
| Display Mode | Transflective |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Pitch [x] | 0.52 mm |
| Dot Pitch [y] | 0.52 mm |
| Dot Pixels [x] | 128 |
| Dot Pixels [y] | 64 |
| Dot Size [custom] | 0.48 mm |
| Dot Size [custom] | 0.48 mm |
| Graphics Color | Black |
| Interface | SPI |
| Viewing Area [x] | 70.7 mm |
| Viewing Area [y] | 38.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.08 | |
| 5 | $ 24.48 | |||
Description
General part information
NHD-C12864A1Z-FSB-FBW-HTT
Graphic LCD Display Module Transflective Black (Blue - Inverted) FSTN - Film Super-Twisted Nematic SPI 128 x 64
