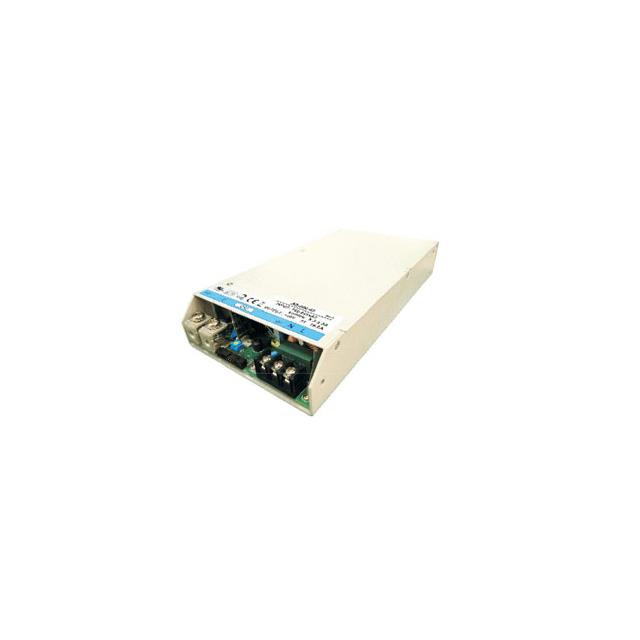

AE-800-36
ActiveCotek
AC/DC CONVERTER 36V 800W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AE-800-36
ActiveCotek
AC/DC CONVERTER 36V 800W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AE-800-36 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 22.3 A |
| Efficiency | 92 % |
| Features | Adjustable Output, DC Input Capable, Load Sharing, I2C Interface, Standby Input, Remote Sense, Universal Input, PFC, Remote On/Off |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 800 W |
| Size / Dimension [x] | 249 mm |
| Size / Dimension [x] | 9.8 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 41 mm |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 373.75 | |
Description
General part information
AE-800-36
Enclosed AC DC Converters 1 Output 36V 90 ~ 264 VAC, 127 ~ 370 VDC Input
