3433
ActiveWoertz

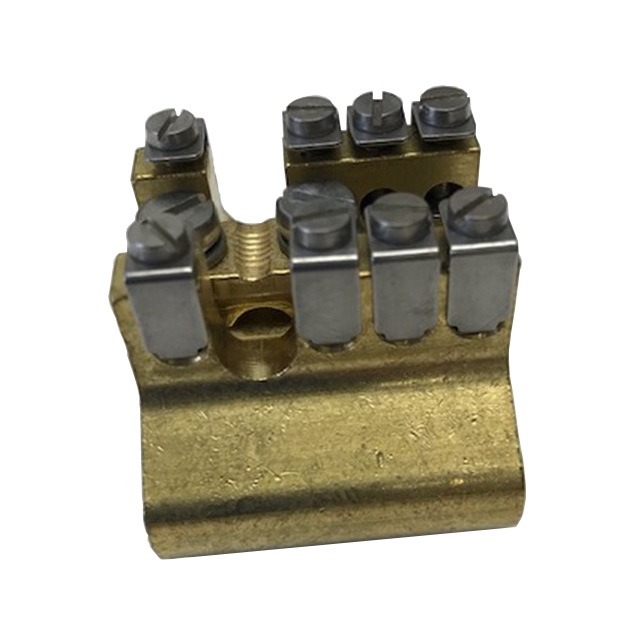

9 POINT BRASS COLLECTOR GROUND B
Deep-Dive with AI
Search across all available documentation for this part.
3433
ActiveWoertz
9 POINT BRASS COLLECTOR GROUND B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3433 |
|---|---|
| Number of Levels | 1 |
| Number of Positions | 9 |
| Terminal - Width [y] | 48 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Wire Gauge or Range - AWG [Max] | 18 AWG |
| Wire Gauge or Range - AWG [Min] | 4 AWG |
| Wire Gauge or Range - mm² [Max] | 25 mm² |
| Wire Gauge or Range - mm² [Min] | 2.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 45.00 | |
Description
General part information
3433
Terminal Block Connector 9 Position Feed Through 4-18 AWG
Documents
Technical documentation and resources
No documents available
