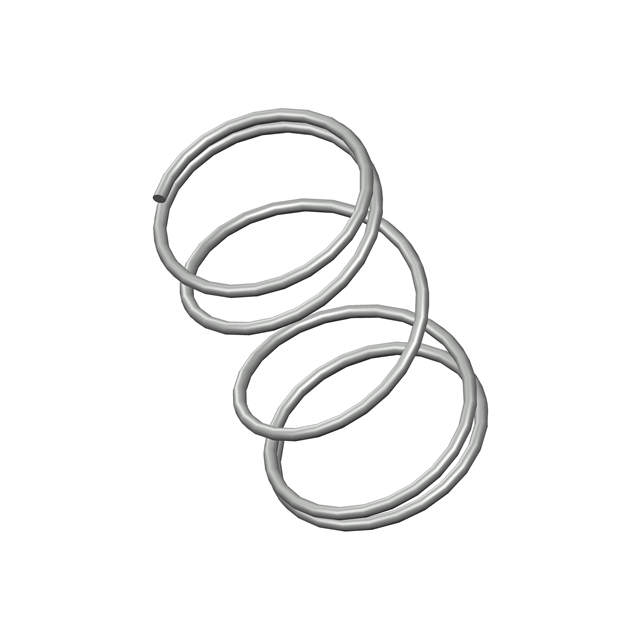

1952CS
ActiveCentury Spring Corp
COMP O= .453,L= .78,W= .026
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1952CS
ActiveCentury Spring Corp
COMP O= .453,L= .78,W= .026
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1952CS |
|---|---|
| Diameter - Inside [diameter] | 0.401 in |
| Diameter - Inside [diameter] | 10.19 mm |
| Diameter - Outside [diameter] | 11.51 mm |
| Diameter - Outside [diameter] | 0.453 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 19.81 mm |
| Free Length | 0.78 in |
| Material | Music Wire |
| Rate | 2.8 lbs/in |
| Wire Diameter [diameter] | 0.026 in |
| Wire Diameter [diameter] | 0.66 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.32 | |
| 50 | $ 2.41 | |||
| 150 | $ 2.29 | |||
| 300 | $ 2.16 | |||
| 500 | $ 1.91 | |||
Description
General part information
1952CS
COMP O= .453,L= .78,W= .026
