B-0500SB0750-0090XF
ActiveOrbel Corporation

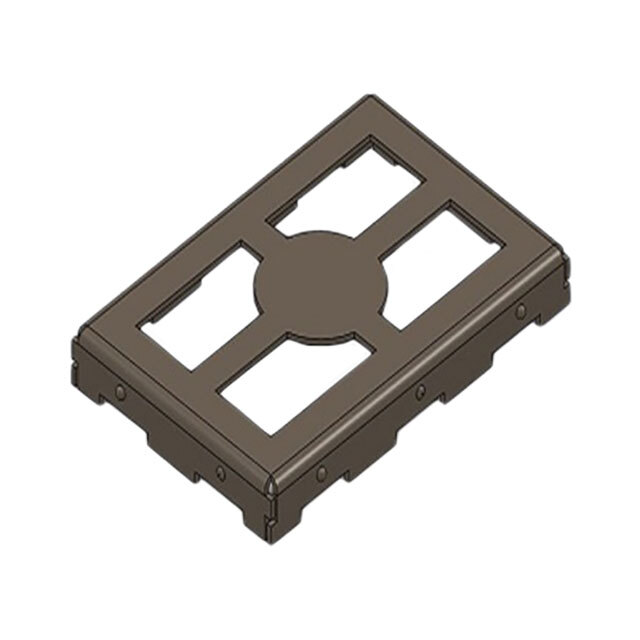

RF SHIELD 0.500" X 0.750" FRAME
Deep-Dive with AI
Search across all available documentation for this part.
B-0500SB0750-0090XF
ActiveOrbel Corporation
RF SHIELD 0.500" X 0.750" FRAME
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B-0500SB0750-0090XF |
|---|---|
| Height - Overall | 2.29 mm |
| Height - Overall | 0.09 in |
| Length - Overall | 19.05 mm |
| Length - Overall [x] | 0.75 in |
| Mounting Type | Surface Mount |
| Type | Shield, 2-Piece |
| Ventilation | Non-Vented |
| Width - Overall [x] | 0.5 in |
| Width - Overall [x] | 12.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.75 | |
| 10 | $ 8.25 | |||
| 25 | $ 7.35 | |||
| 100 | $ 6.34 | |||
| 250 | $ 5.85 | |||
| 500 | $ 5.55 | |||
| 1000 | $ 5.31 | |||
Description
General part information
B-0500SB0750-0090XF
RF Shield Shield, 2-Piece 0.500" (12.70mm) X 0.750" (19.05mm) Non-Vented Surface Mount
Documents
Technical documentation and resources
