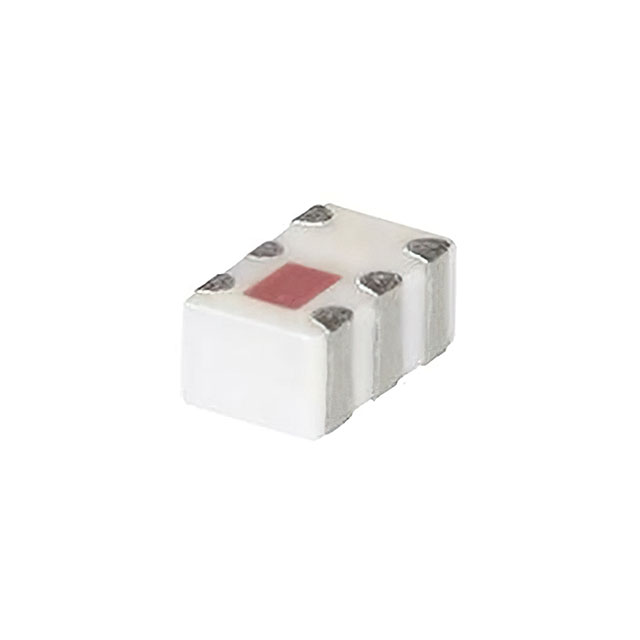

NCS1-422+
ActiveMINI-CIRCUITS
1:1 LTCC TRANSFORMER, 3300 - 400
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NCS1-422+
ActiveMINI-CIRCUITS
1:1 LTCC TRANSFORMER, 3300 - 400
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NCS1-422+ |
|---|---|
| Frequency Range [Max] | 4 GHz |
| Frequency Range [Min] | 3.3 GHz |
| Impedance - Unbalanced/Balanced [custom] | 50 Ohm |
| Impedance - Unbalanced/Balanced [custom] | 50 |
| Insertion Loss (Max) [Max] | 1 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Phase Difference | 4 ° |
| Return Loss (Min) [Min] | 10.35 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 1.16 | |
Description
General part information
NCS1-422+
RF Balun 3.3GHz ~ 4GHz 50 / 50Ohm 6-SMD, No Lead
