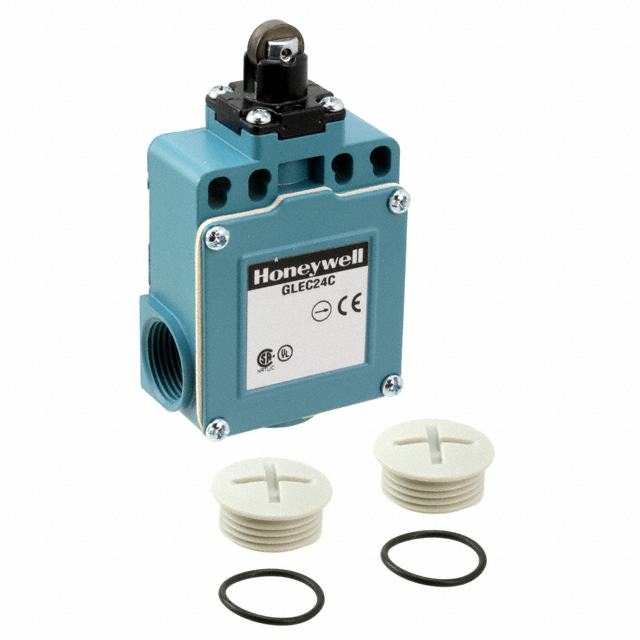

GLEC24C
ObsoleteHoneywell Sensing and Control EMEA
SWITCH SNAP ACTION DPDT 6A 120V
Deep-Dive with AI
Search across all available documentation for this part.
GLEC24C
ObsoleteHoneywell Sensing and Control EMEA
SWITCH SNAP ACTION DPDT 6A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GLEC24C |
|---|---|
| Actuator Type | Roller Plunger |
| Circuit | DPDT |
| Current Rating (Amps) | 550 mA, 6 A |
| Differential Travel | 0.6 mm |
| Differential Travel | 0.025 in |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 15000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 1315 gf |
| Operating Position | 1.1 in |
| Operating Position | 28 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 3 mm |
| Overtravel | 0.118 in |
| Pretravel | 0.12 in |
| Pretravel | 3 mm |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GLEC24C
Switch DPDT Chassis Mount
