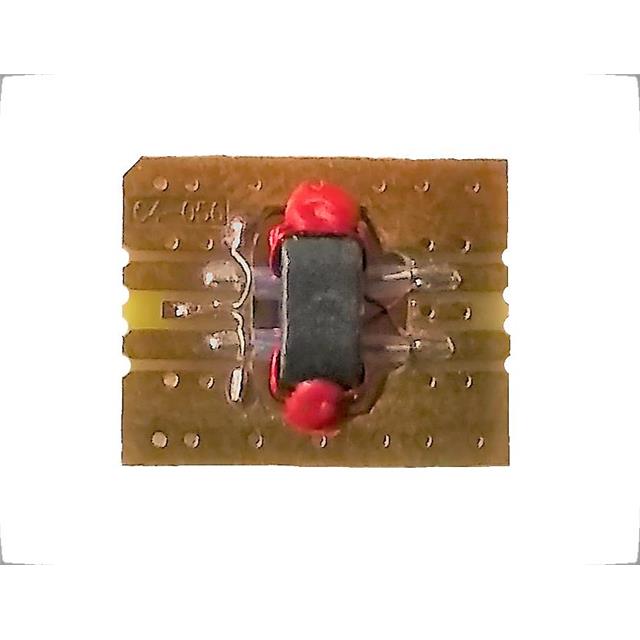

C4-056-HT
ActiveI.F. Engineering Corp and CrossPoint Technologies
RF DIR COUPLER 4 PORT 22DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C4-056-HT |
|---|---|
| Coupler Type | Standard |
| Coupling Factor | 22 dB |
| Frequency [Max] | 550 MHz |
| Frequency [Min] | 137 MHz |
| Insertion Loss | 0.22 dB |
| Isolation | 20 dB |
| Package / Case | Nonstandard |
| Power - Max [Max] | 25 W |
| Supplier Device Package | SMD |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 104.00 | |
| 5 | $ 100.00 | |||
| 10 | $ 95.00 | |||
| 20 | $ 92.50 | |||
| 25 | $ 92.00 | |||
Description
General part information
C4-056-HT
RF Directional Coupler 137MHz ~ 550MHz 22 ± 2dB 25W Nonstandard
