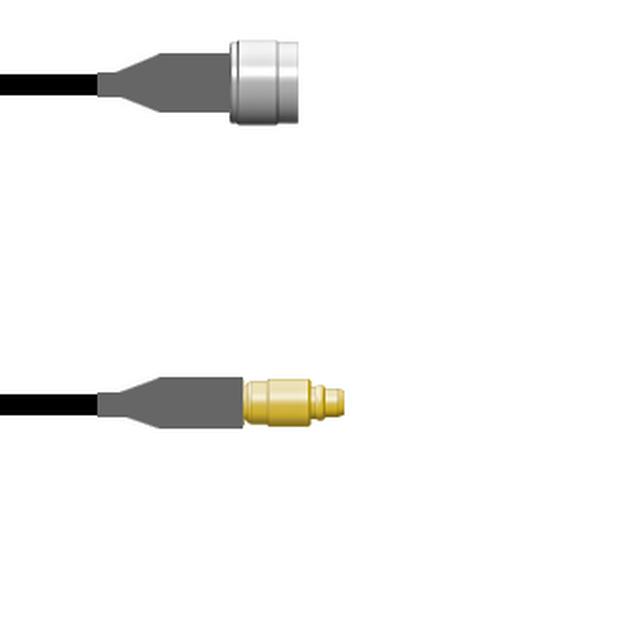

Q-2I01Q00031.5M
ActiveAmphenol Custom Cable
CBL ASSY MMCX-NTYPE PLG-PLG 4.9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2I01Q00031.5M
ActiveAmphenol Custom Cable
CBL ASSY MMCX-NTYPE PLG-PLG 4.9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2I01Q00031.5M |
|---|---|
| 1st Connector | MMCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 59.1 in |
| Length | 4.9 ft |
| Length | 1.5 m |
| Overall Impedance | 50 Ohms |
| Style | MMCX to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 68.96 | |
| 25 | $ 64.20 | |||
| 50 | $ 59.45 | |||
| 100 | $ 55.37 | |||
| 250 | $ 51.97 | |||
Description
General part information
Q-2I01Q00031.5M
Cable Assembly Coaxial MMCX to N-Type RG-174 59.1" (1.5m) 4.9'
Documents
Technical documentation and resources
No documents available
