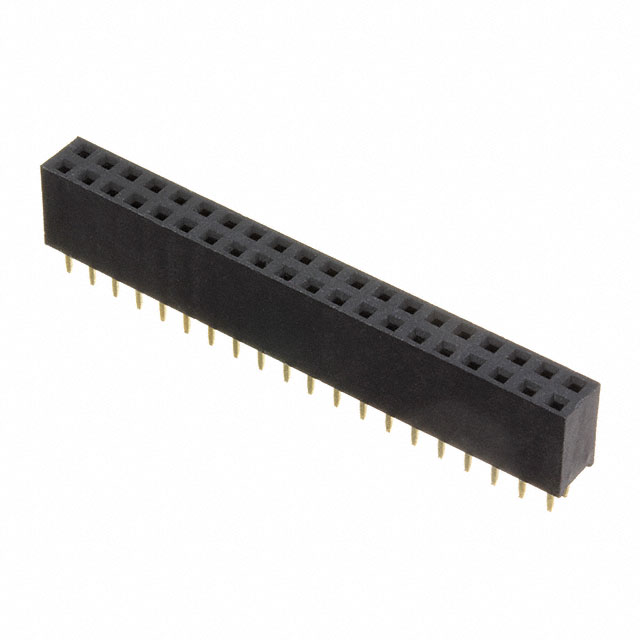

920-0135-01
ActiveSchmartboard, Inc.
CONN HDR 40POS 0.1 GOLD PCB 4PC
Deep-Dive with AI
Search across all available documentation for this part.
920-0135-01
ActiveSchmartboard, Inc.
CONN HDR 40POS 0.1 GOLD PCB 4PC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 920-0135-01 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.00 | |
Description
General part information
920-0135-01
40 Position Header Connector 0.100" (2.54mm) Through Hole Gold
Documents
Technical documentation and resources
No documents available
