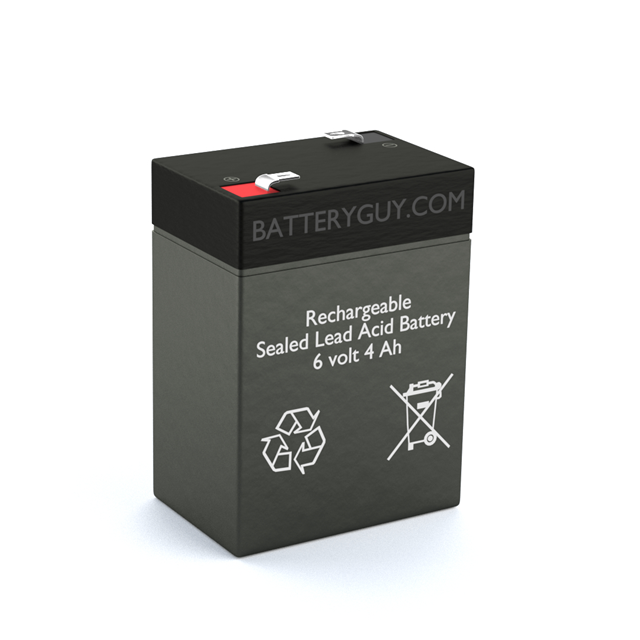

BG-640F1
ActiveBatteryGuy
BATTERY LEAD ACID 6V 4AH
Deep-Dive with AI
Search across all available documentation for this part.
BG-640F1
ActiveBatteryGuy
BATTERY LEAD ACID 6V 4AH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BG-640F1 |
|---|---|
| Battery Chemistry | Sealed Lead Acid (SLA, VRLA) |
| Capacity | 4 Ah |
| Size / Dimension [x] | 70.1 mm |
| Size / Dimension [x] | 2.76 in |
| Size / Dimension [y] | 47.2 mm |
| Size / Dimension [y] | 1.86 " |
| Size / Dimension [z] | 3.94 in |
| Size / Dimension [z] | 100.1 mm |
| Termination Style | Spade, .187" (4.7mm) |
| Voltage - Rated | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.01 | |
| 20 | $ 9.88 | |||
| 100 | $ 8.07 | |||
Description
General part information
BG-640F1
6 V Sealed Lead Acid (SLA, VRLA) Battery Rechargeable (Secondary) 4Ah
Documents
Technical documentation and resources
No documents available
