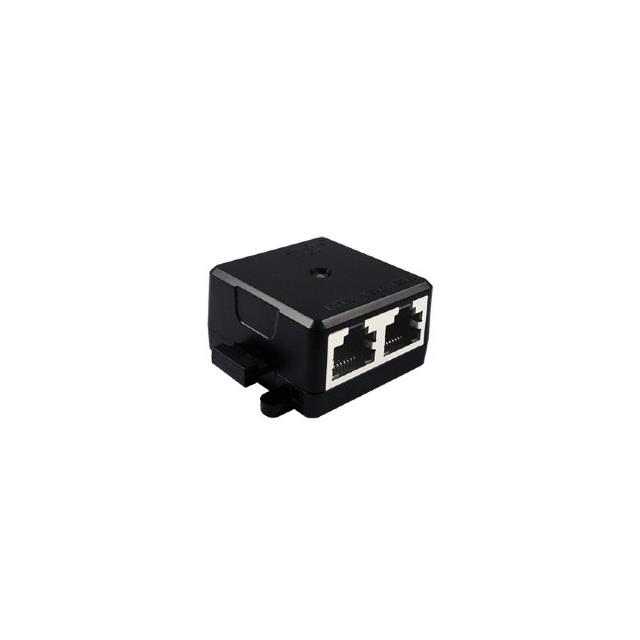

FPOE-PE-60W
ActiveCERiO Corporation
60W DC 5G POE+ PASSIVE INJECTOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FPOE-PE-60W
ActiveCERiO Corporation
60W DC 5G POE+ PASSIVE INJECTOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FPOE-PE-60W |
|---|---|
| Approval Agency | FCC, CE |
| Compliance | IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3 |
| Data Rate | 2.5Gbps, 5Gbps, 10/100/1000 Mbps |
| Efficiency | Level VI |
| Features | SCP, OVP |
| Input Connector | 2.5mm Receptacle (Power), RJ45 (Data) |
| Mounting Type | Desktop, Wall Mount |
| Note | DC Power Adapter Included |
| Number of Ports | 2 |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 60 W |
| Size / Dimension [x] | 54 mm |
| Size / Dimension [x] | 2.13 " |
| Size / Dimension [y] | 41 mm |
| Size / Dimension [y] | 1.61 " |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 23 mm |
| Type | Passive Injector |
| Voltage - Input [Max] | 57 V |
| Voltage - Input [Min] | 50 V |
| Voltage - Output | 56 V |
| Weight | 0.07 lb |
| Weight | 30 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 28.60 | |
| 38 | $ 28.03 | |||
| 76 | $ 27.47 | |||
| 152 | $ 26.92 | |||
| 304 | $ 26.38 | |||
| 380 | $ 25.06 | |||
| 760 | $ 23.81 | |||
Description
General part information
FPOE-PE-60W
56V Power Over Ethernet (POE) 2 Port Passive Injector 10/100/1000 Mbps, 2.5Gbps, 5Gbps Data Rate
