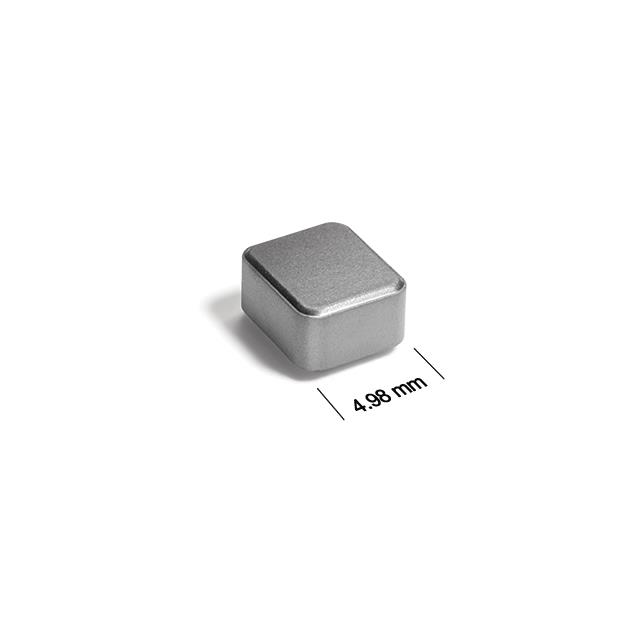

1812PS-824KRC
ActiveCoilcraft
FIXED IND 820UH 250MA 7.35OHM SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1812PS-824KRC
ActiveCoilcraft
FIXED IND 820UH 250MA 7.35OHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1812PS-824KRC |
|---|---|
| Current - Saturation (Isat) | 90 mA |
| Current Rating (Amps) | 0.25 A |
| DC Resistance (DCR) [Max] | 7.35 Ohm |
| Frequency - Self Resonant | 1.8 MHz |
| Inductance | 820 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ceramic, Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 1 MHz, 30 |
| Shielding | Shielded |
| Size / Dimension [x] | 5.87 mm |
| Size / Dimension [x] | 0.231 " |
| Size / Dimension [y] | 4.98 mm |
| Size / Dimension [y] | 0.196 in |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1812PS-824KRC
820 µH Shielded Wirewound Inductor 250 mA 7.35Ohm Max Nonstandard
