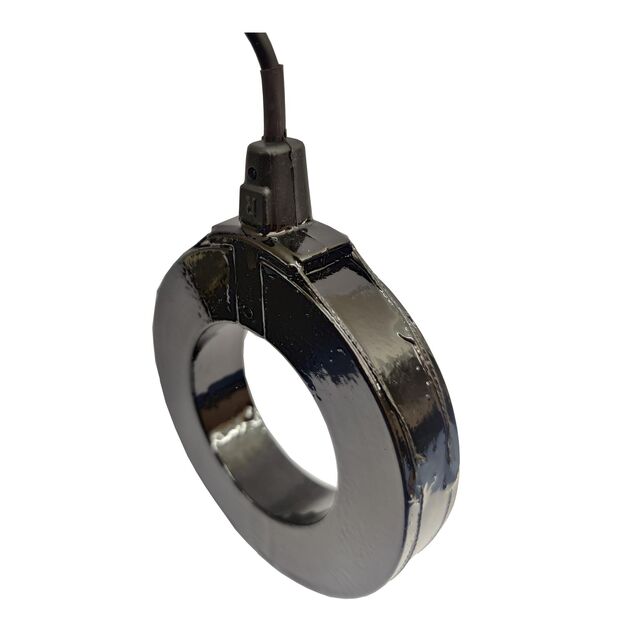

RAZFL-105FMLG
ActiveRaztec Sensors
1,000A CURRENT SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRAZFL-105FMLG
RAZFL-105FMLG
ActiveRaztec Sensors
1,000A CURRENT SENSOR
Deep-Dive with AI
DocumentsRAZFL-105FMLG
Technical Specifications
Parameters and characteristics for this part
| Specification | RAZFL-105FMLG |
|---|---|
| Accuracy | 2 % |
| Current - Sensing | 1000 A |
| Current - Supply (Max) [Max] | 12 mA |
| For Measuring | AC/DC |
| Frequency | 50 kHz |
| Linearity | 0.8 % |
| Mounting Type | Free Hanging |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Polarization | Bidirectional |
| Response Time | 7 µs |
| Sensitivity | 2 mg/digit |
| Sensor Type | Hall Effect, Open Loop |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 181.78 | |
Description
General part information
RAZFL-105FMLG
Current Sensor 1000A 1 Channel Hall Effect, Open Loop Bidirectional
