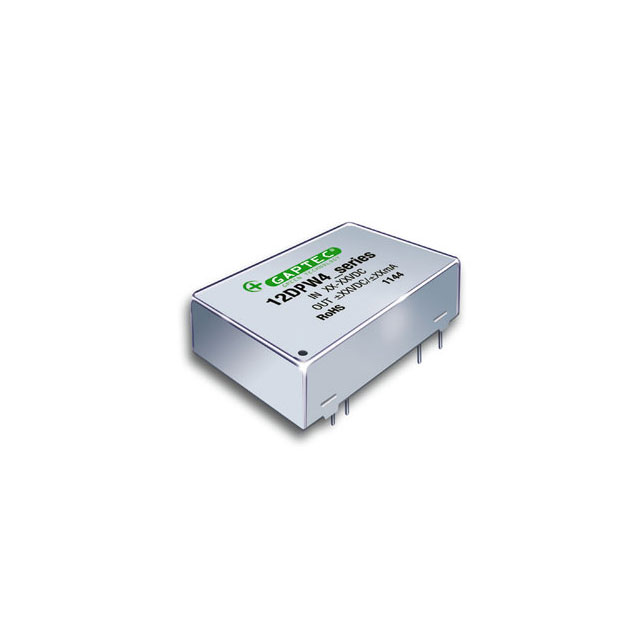

12DPW4_2412S1.5
ActiveGAPTEC Electronic
ISOLATED MODULE DC DC CONVERTERS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12DPW4_2412S1.5
ActiveGAPTEC Electronic
ISOLATED MODULE DC DC CONVERTERS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12DPW4_2412S1.5 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 83 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9 PC Pad |
| Package / Case | 24-DIP Module |
| Power (Watts) | 12 W |
| Size / Dimension [x] | 1.24 in |
| Size / Dimension [x] | 31.6 mm |
| Size / Dimension [y] | 0.79 " |
| Size / Dimension [y] | 20.1 mm |
| Size / Dimension [z] | 10 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 28.23 | |
| 5 | $ 27.18 | |||
| 15 | $ 26.49 | |||
| 30 | $ 26.06 | |||
| 60 | $ 25.63 | |||
| 105 | $ 25.30 | |||
| 255 | $ 24.77 | |||
Description
General part information
12DPW4_2412S1.5
Isolated Module DC DC Converter 1 Output 12V 1A 9V - 36V Input
Documents
Technical documentation and resources
