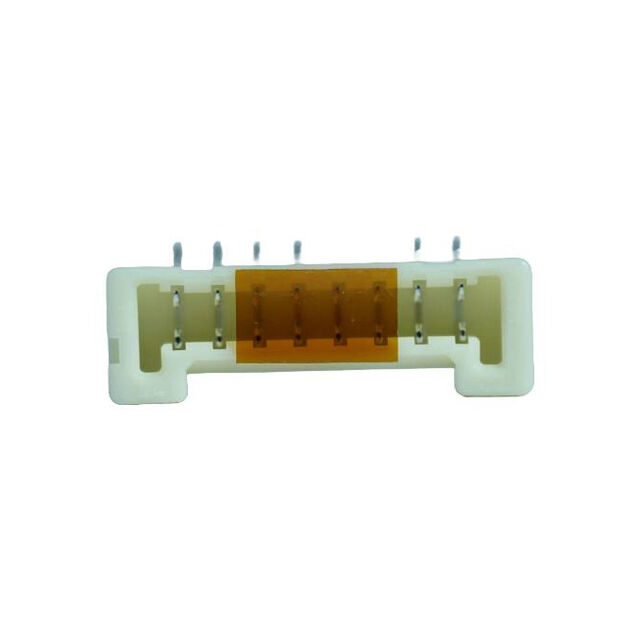

STA12-08WV-ET
ActiveJAM
1.25 MM W TO B CONNECTOR 8P HEAD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STA12-08WV-ET
ActiveJAM
1.25 MM W TO B CONNECTOR 8P HEAD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STA12-08WV-ET |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 1.5 A |
| Fastening Type | Locking Ramp |
| Insulation Color | White |
| Insulation Height | 0.156 in |
| Insulation Height | 3.96 mm |
| Insulation Material | Polyamide (PA6T), Glass Filled, Nylon 6T |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| Tape & Reel (TR) | 1500 | $ 0.22 | ||
| 3000 | $ 0.21 | |||
| 4500 | $ 0.20 | |||
| 7500 | $ 0.19 | |||
| 10500 | $ 0.18 | |||
| 15000 | $ 0.18 | |||
| 37500 | $ 0.16 | |||
Description
General part information
STA12-08WV-ET
Connector Header Surface Mount 8 position 0.049" (1.25mm)
