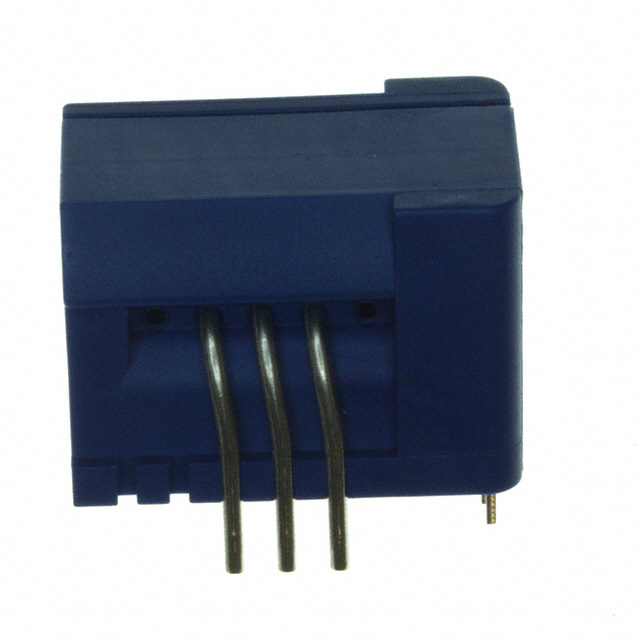

CASR 50-NP
ActiveLEM USA Inc.
SENSOR CURRENT FLUX 50A AC/DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CASR 50-NP
ActiveLEM USA Inc.
SENSOR CURRENT FLUX 50A AC/DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CASR 50-NP |
|---|---|
| Accuracy | 0.8 % |
| Current - Sensing | 50 A |
| Current - Supply (Max) [Max] | 20 mA |
| For Measuring | AC/DC |
| Frequency | 300 kHz |
| Linearity | 1 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 0.3 µs |
| Sensitivity | 12.5 mV/°/sec |
| Sensor Type | Flux Gate, Closed Loop |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 22.92 | |
| 10 | $ 18.15 | |||
| 25 | $ 17.19 | |||
| 200 | $ 14.80 | |||
| 600 | $ 13.85 | |||
Description
General part information
CASR 50-NP
Current Sensor 50A 1 Channel Flux Gate, Closed Loop Bidirectional Module
