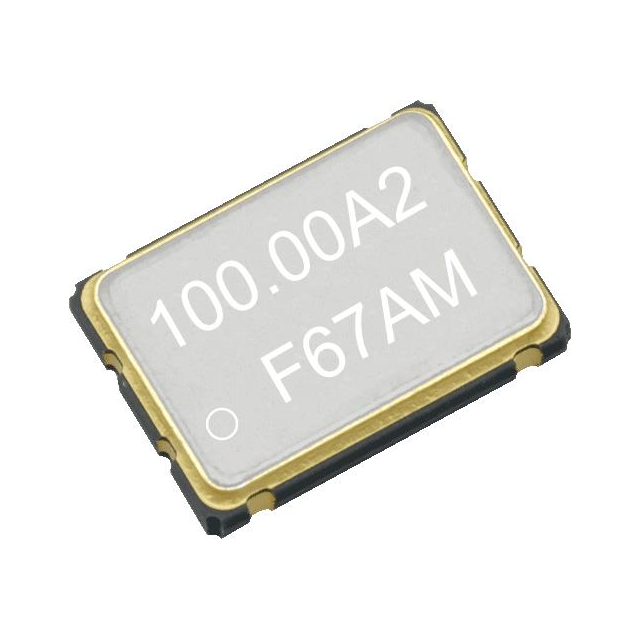

SG-8018CA 49.5500M-TJHSA0
ActiveEPSON
XTAL OSC XO 49.5500MHZ CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-8018CA 49.5500M-TJHSA0 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 1.1 µA |
| Current - Supply (Max) [Max] | 8.1 mA |
| Frequency | 49.55 MHz |
| Frequency Stability | 50 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) [Max] | 1.4 mm |
| Height - Seated (Max) [Max] | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.71 | |
Description
General part information
SG-8018CA 49.5500M-TJHSA0
49.55 MHz XO (Standard) CMOS Oscillator 1.62V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
