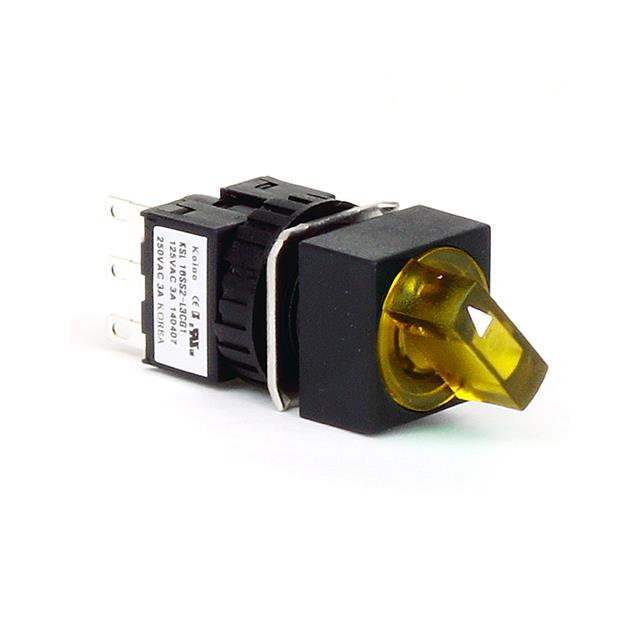

KSL16SAS2-L1CY1
ActiveKOINO
16MM SELECTOR SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KSL16SAS2-L1CY1
ActiveKOINO
16MM SELECTOR SWITCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KSL16SAS2-L1CY1 |
|---|---|
| Approval Agency | cULus, CE |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Features | Bezel - Square |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Yellow |
| Illumination Voltage (Nominal) | 6 V |
| Ingress Protection | IP40 |
| Mechanical Life | 300000 Cycles |
| Number of Positions | 2 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 16.2 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 15.94 | |
| 20 | $ 12.36 | |||
| 50 | $ 9.66 | |||
| 100 | $ 8.89 | |||
Description
General part information
KSL16SAS2-L1CY1
Selector Switch 2 Position 3A (AC/DC) 250 V Panel Mount
