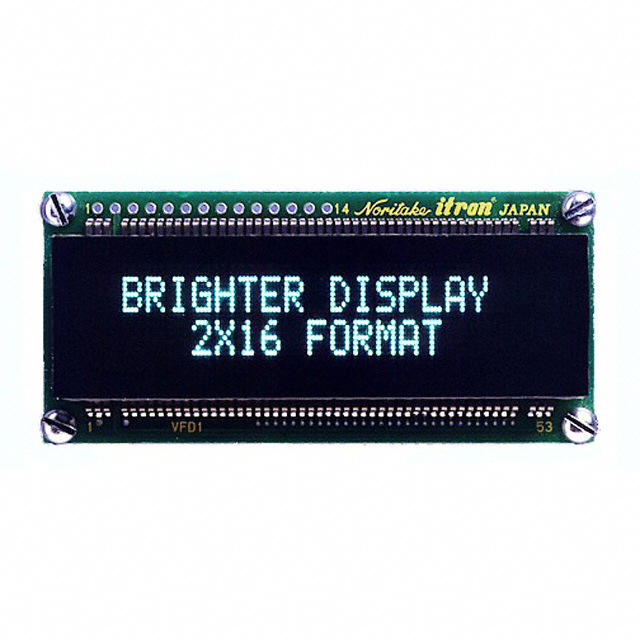

CU16025ECPB-W6J
ObsoleteNoritake U.S.A., Inc.
MODULE VF DISPLAY 16X2 5MM CHAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CU16025ECPB-W6J
ObsoleteNoritake U.S.A., Inc.
MODULE VF DISPLAY 16X2 5MM CHAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CU16025ECPB-W6J |
|---|---|
| Character Size [x] | 4.76 mm |
| Character Size [y] | 2.46 mm |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 13 mm |
| Viewing Area [x] | 51.4 mm |
| Viewing Area [y] | 11.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CU16025ECPB-W6J
Vacuum Fluorescent Display (VFD) 16 x 2 Character 5V 80.00mm x 36.00mm x 13.00mm
